DIN Rail Mount
| Parameter | Value |
|---|---|
| Part Number | AMP-1005 |
| DIN Rail | 35 mm top-hat rail (EN 60715) |

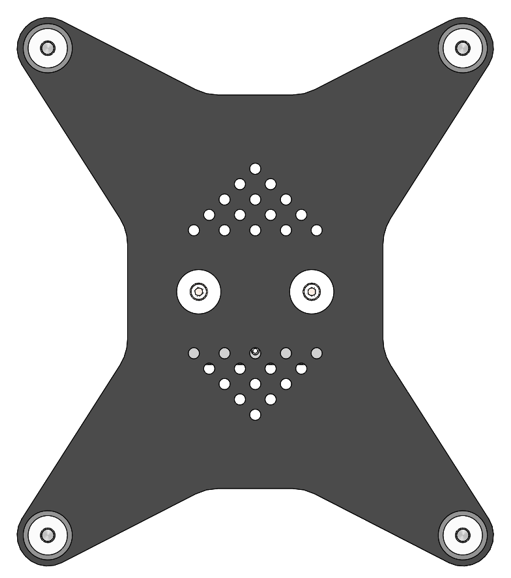

| Kit Contents | DIN rail mounting plate 4x Rubber stand-offs 4x M6 nuts 4x M6x16 socket head cap screws |

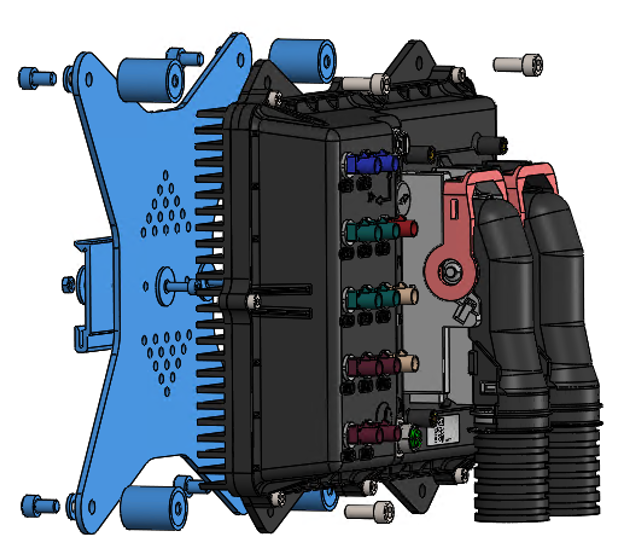

| Mounting | AutomatePro bolts to the stand-offs on the plate Assembly clips onto the DIN rail |
| Orientation | Any orientation Y+ axis upward recommended |
| Heat Sink Clearance | 6 mm minimum to mounting surface |
| Installation | DIN Rail Installation |
The rubber stand-offs isolate the AutomatePro from vibration and keep the heat sink clear of the mounting plate. In high-vibration environments, use a threadlocker or wedge washers on the fasteners.
