RTK Heading

Hardware

AutomatePro can be configured with an integrated RTK GNSS heading sensor, providing precise heading. This is particularly useful when the onboard IMU’s magnetic bearing accuracy is insufficient or when the magnetometer is affected by the operational environment, such as around large steel structures. Depending on antenna placement, the GNSS heading sensor can also measure the robot’s roll or pitch.

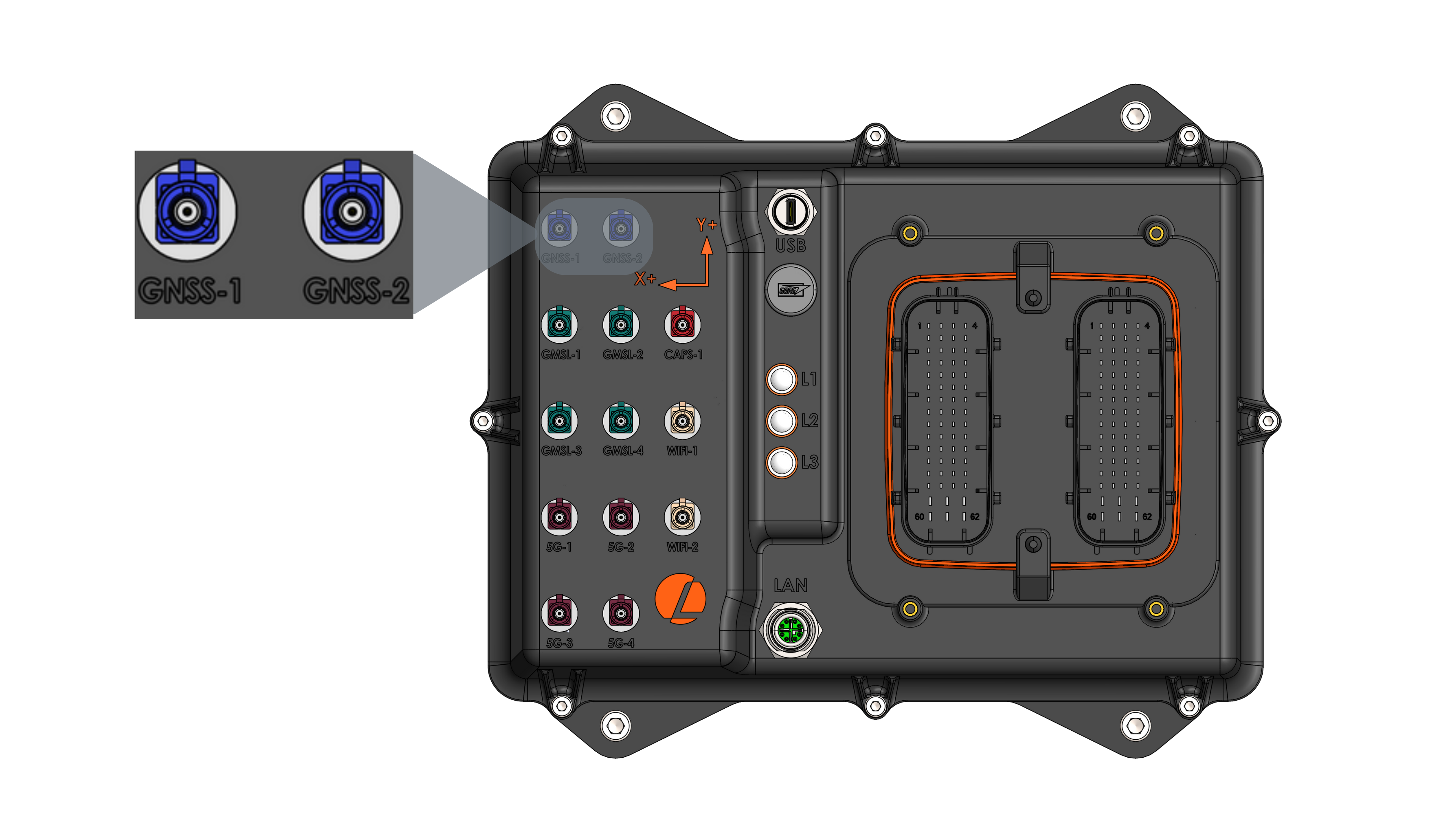

The differential heading is provided by the u-blox F9H series. If included, AutomatePro will feature a blue FAKRA connector for antenna connection, with “GNSS-2” used for position and “GNSS-1” for heading.

GNSS Heading Specifications

Parameter	Value
Receiver	u-blox F9H
Connector	GNSS-1 (FAKRA C - Signal Blue)
Supported Constellation	GPS, Galileo, BeiDou, GLONASS
Heading Accuracy	0.4° 1 (with antenna spacing >1m)
Max Navigation Update Rate	Default 1Hz (Can be configured up to 8Hz)

Info

¹ Depends on antennas and spacing between the two antennas. See the datasheet for more information.

External Antenna

The AutomatePro system is compatible with a variety of multi-band high-precision GNSS antennas that have a FAKRA Type C connector (Signal Blue). More information on antennas used with AutomatePro is available here.

Antenna Separation: Ensure a minimum separation of 1 meter (≥1m) between the two GNSS antennas. Configuration options are heading (Yaw) and pitch or heading (Yaw) and roll.

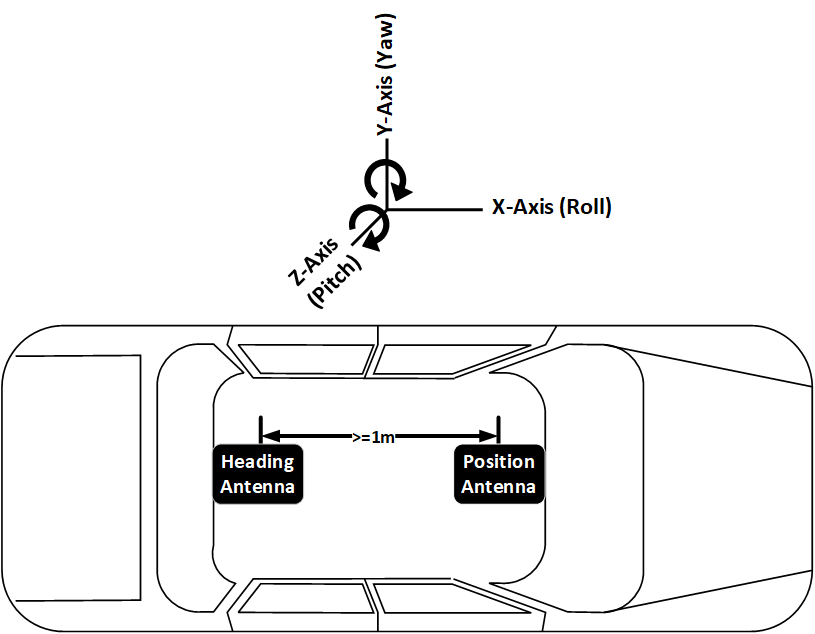

Yaw & Pitch

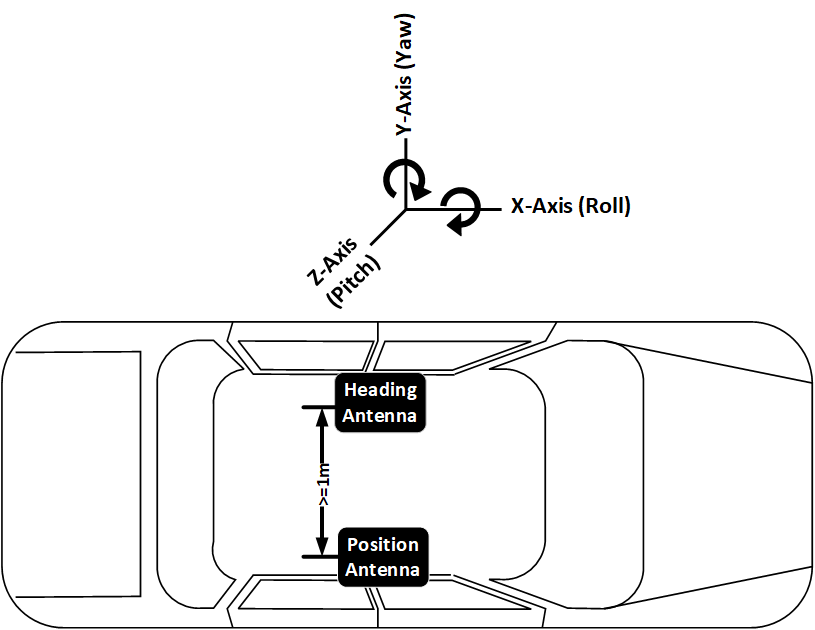

Yaw & Roll

ROS API

Node: automatepro_gnss_heading_node

Publishers

Topic	Type	Description
/sensor/gnss/heading/fix	sensor_msgs/msg/NavSatFix	GNSS fix from the heading receiver.
/sensor/gnss/heading/fix_velocity	geometry_msgs/msg/ TwistWithCovarianceStamped	Velocity from the heading receiver.
/sensor/gnss/heading/true_heading	sensor_msgs/msg/Imu	Differential heading as an orientation quaternion with covariance.
/sensor/gnss/heading/navrelposned	ublox_msgs/msg/NavRELPOSNED9	Detailed differential heading with additional information for calculating either roll or pitch.
/sensor/gnss/heading/monhw	ublox_msgs/msg/MonHW	Hardware status of the GNSS heading module.
/sensor/gnss/heading/monsys	ublox_msgs/msg/MonSYS	System monitor status of the GNSS heading module.
/diagnostics	diagnostic_msgs/msg/DiagnosticArray	GNSS heading ROS driver diagnostics.

Topic for heading data

Even though /sensor/gnss/heading/navrelposned provides more information, it is not required for normal use cases. It is recommended to use /sensor/gnss/heading/true_heading for your application, which provides heading as a quaternion with covariance.

Parameters

Parameter	Type	Packaged default	Runtime R/W	Description
device	string	/dev/serial/by-id/usb-u-blox_AG_-_www.u-blox.com_u-blox_GNSS_receiver-if00	read-only	Serial port for the F9H receiver.
frame_id	string	gnss_heading	read-only	Frame ID for published messages.
config_on_startup	bool	false	read-only	Leaves receiver flash configuration unchanged at startup.
gpio.chipname	string	gpiochip0	read-only	GPIO chip used for receiver reset recovery.
gpio.line_num	int	134	read-only	GPIO line used for receiver reset recovery.
gpio.reset_time	int	1	read-only	Reset pulse duration in seconds.
recovery.cycle_time	int	1	read-only	Delay between recovery attempts in seconds.
watchdog.timeout	int	3000	read-only	Watchdog timeout in milliseconds.
watchdog.cycle_time	int	500	read-only	Watchdog check interval in milliseconds.
publish.all	bool	false	read-only	Enables all publisher groups when true.
publish.aid.hui	bool	false	read-only	Enables AID-HUI message publishing.
publish.nav.relposned	bool	true	read-only	Enables NavRELPOSNED9 publishing.
publish.nav.heading	bool	true	read-only	Enables heading publishing on /sensor/gnss/heading/true_heading.
publish.nmea	bool	false	read-only	Keeps NMEA sentence publishing disabled for the heading receiver.
publish.mon.all	bool	true	read-only	Enables monitor-message publishers, including hardware status.
debug	int	0	read-only	Debug verbosity; range 0-4.

Configuration

Driver: automatepro_gnss_driver Container: automatepro-core-driver

info

Runtime configuration files are in the /opt/automatepro/config/ros directory. Packaged defaults are installed in /opt/automatepro/defconfig/ros. The runtime files are mounted into the Docker container and used by the ROS driver. Environment variables can be set in the /opt/automatepro/.env file.

The runtime configuration file is:

/opt/automatepro/config/ros/gnss_heading_params.yaml

The packaged default source is:

/opt/automatepro/defconfig/ros/gnss_heading_params.yaml

Default Config

# Configuration Settings for F9H device in Rover Mode
automatepro_gnss_heading_node:
  ros__parameters:
    debug: 0                    # Range 0-4 (0 means no debug statements will print)

    device: /dev/serial/by-id/usb-u-blox_AG_-_www.u-blox.com_u-blox_GNSS_receiver-if00 #/dev/ttyACM0
    frame_id: gnss_heading

    config_on_startup: false    # If false, the node will not override configurations of the device on startup
                                # Device should be configured with u-center and configurations should be saved in flash
                                # Please use the configuration file provided by Lemvos

    # GPIO configuration
    gpio:
      chipname: "gpiochip0"
      line_num: 134
      reset_time: 1

    # Recovery configuration
    recovery:
      cycle_time: 1

    # Watchdog configuration
    watchdog:
      timeout: 3000
      cycle_time: 500

    # Enable u-blox gnss message publishers
    publish:
      all: false
      aid:
        hui: false
      nav:
        relposned: true
        heading: true
      nmea: false
      mon:
        all: true

Important

Restart the automatepro-core-driver Docker container after changing the configuration. Configuration changes are applied only after the container restarts.

docker restart automatepro-core-driver
