System Overview
AutomatePro is a robust and versatile ROS2 platform tailored for outdoor robotics and automation applications. It integrates numerous essential systems into a single solution, including extensive I/O, powerful computing capabilities (with ML and AI accelerators), an integrated IMU and GNSS, and a durable IP67-rated housing. Additionally, it features various data interfaces, wireless communication options (4G, 5G, WiFi), a wide voltage supply range, and pre-configured software tools to seamlessly integrate all these systems.
The AutomatePro’s on-board I/O minimizes the need for external components, reducing installation costs and enhancing robustness. It includes integrated H-bridges or solid-state switches, digital inputs/outputs, warning system drivers (light and sound), and multiple analog inputs. These features simplify the design and construction of reliable outdoor robotics systems.
For navigation, the AutomatePro includes several on-board sensor options, such as positional RTK GNSS (3-6cm accuracy), satellite-based RTK correction, wheel speed and direction input for dead reckoning, and differential RTK heading for applications where magnetic bearing is insufficient. Additionally, it comes standard with a 9-axis IMU (3-axis accelerometer, 3-axis gyro, and 3-axis magnetometer).
The AutomatePro supports a variety of communication protocols, including optional GMSL2, Ethernet, CAN, RS485, and USB 3.0, facilitating seamless integration with other systems. Additionally, it offers a range of wireless communication options such as optional 5G/4G, WiFi, and Bluetooth, making it easy to connect to external devices like cameras, radars, LIDAR, Remote Monitoring Stations, and motor controllers.
The AutomatePro offers a wide input voltage range of 16VDC to 58VDC, along with comprehensive voltage and current monitoring capabilities. It includes two internal voltage regulators, providing 12VDC and 5VDC outputs, which are accessible for powering external systems such as sensors or small actuators. Both regulators feature current and voltage monitoring for enhanced system diagnostics.
The AutomatePro offers four levels of compute based on the Nvidia Orin Platform: Jetson Orin NX 16GB, Jetson Orin NX 8GB, Jetson Orin Nano 8GB, and Jetson Orin Nano 4GB. These options provide a range of performance capabilities. For more information, please refer to the Jetson Orin Series
AutomatePro comes preloaded with JetPack 6.0 (rev 2) and fully integrated ROS 2 drivers for all supported sensors and I/O. The system is designed for seamless deployment, requiring no additional setup to begin operation.
To support real-time and time-sensitive applications, AutomatePro is equipped with real-time kernel patches, offering low-latency, soft real-time performance that aligns with ROS 2 Control requirements.

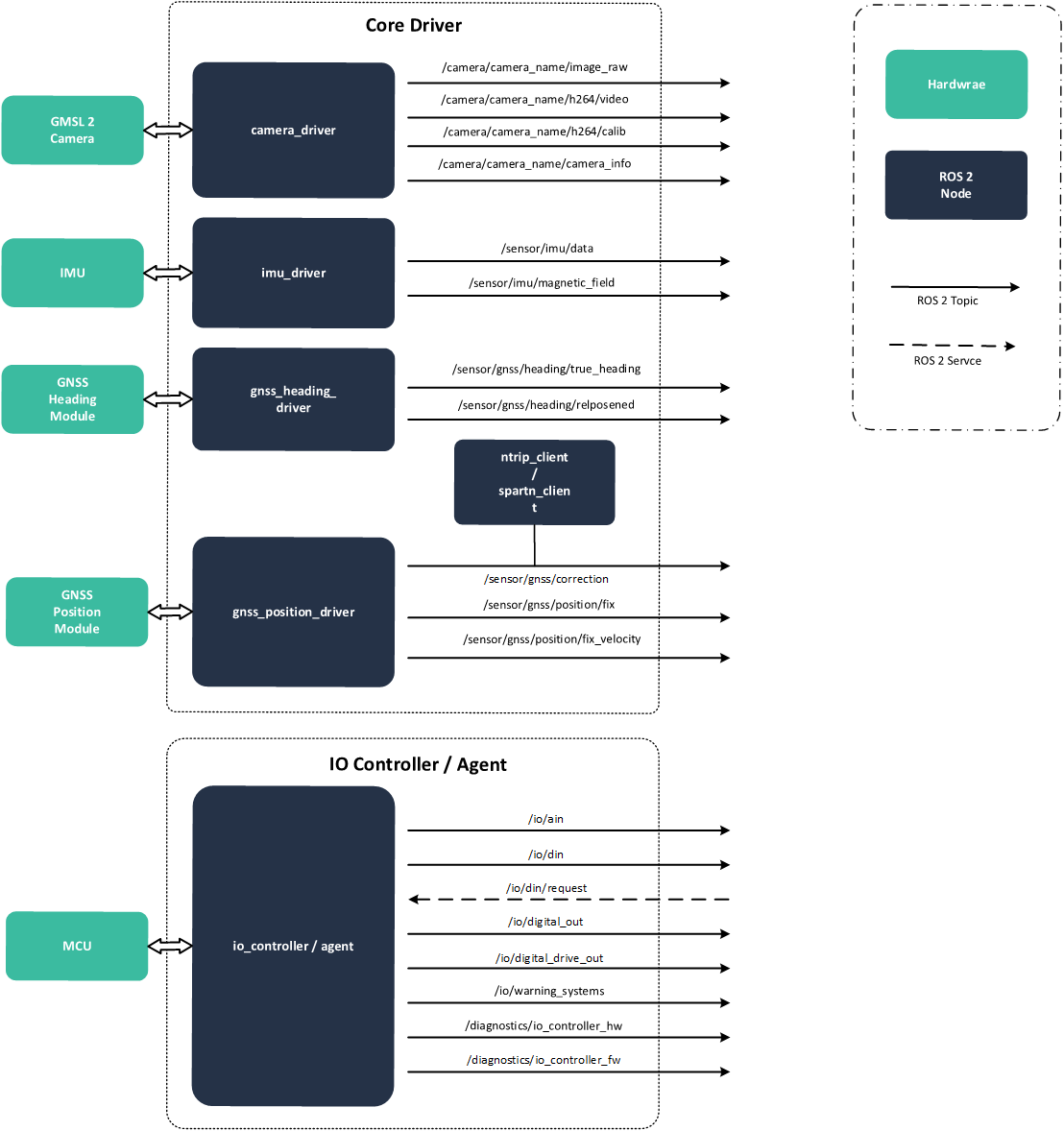

All ROS 2 drivers are pre-installed, pre-configured, and tested, ensuring immediate compatibility without additional integration effort.

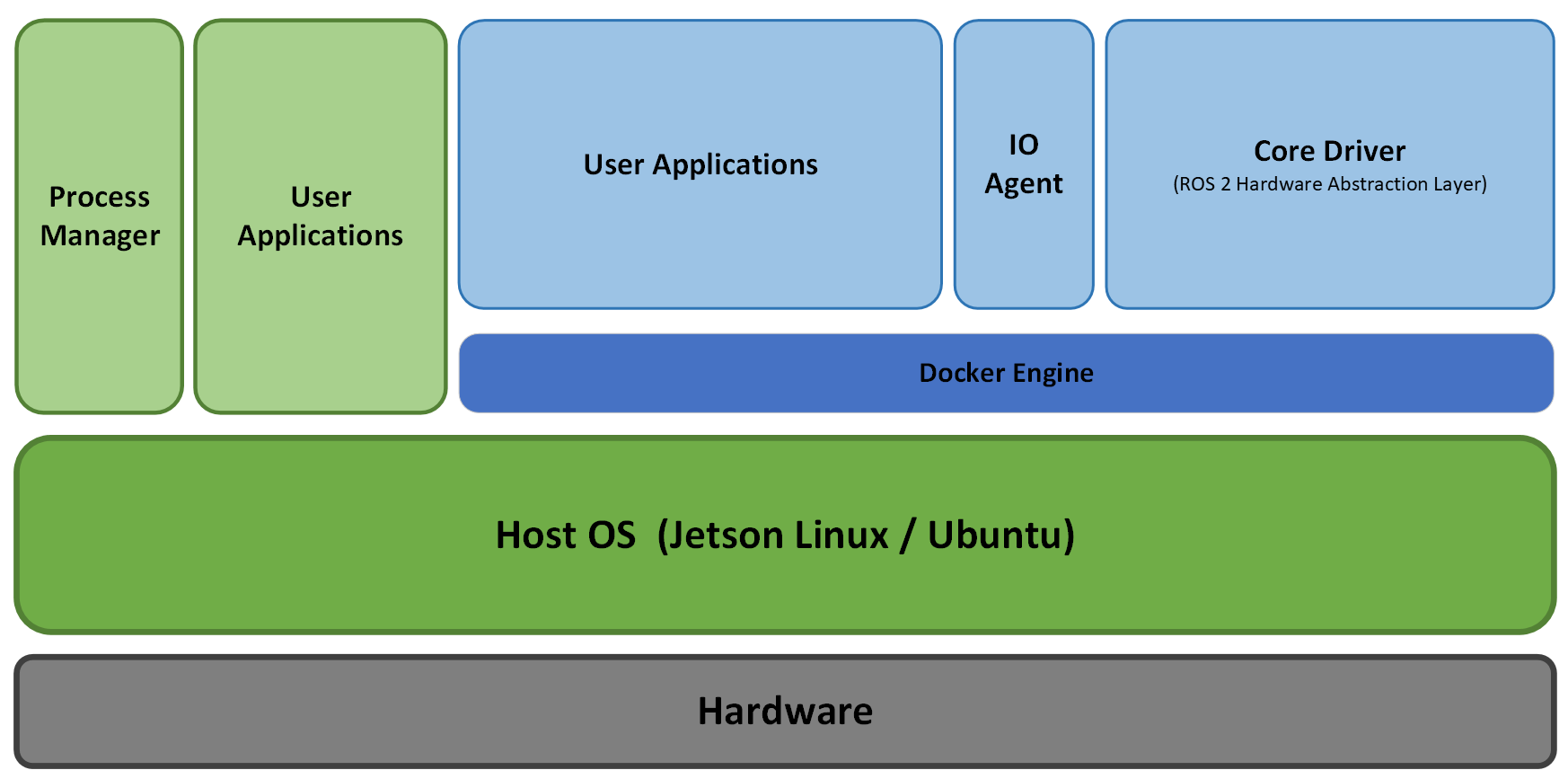

By default, ROS 2 drivers are provided as Docker containers, allowing for modular deployment, simplified updates, and easy maintenance. However, for users requiring direct system access, ROS 2 can also be run natively on the host system, offering greater flexibility for development, debugging, and custom configurations.

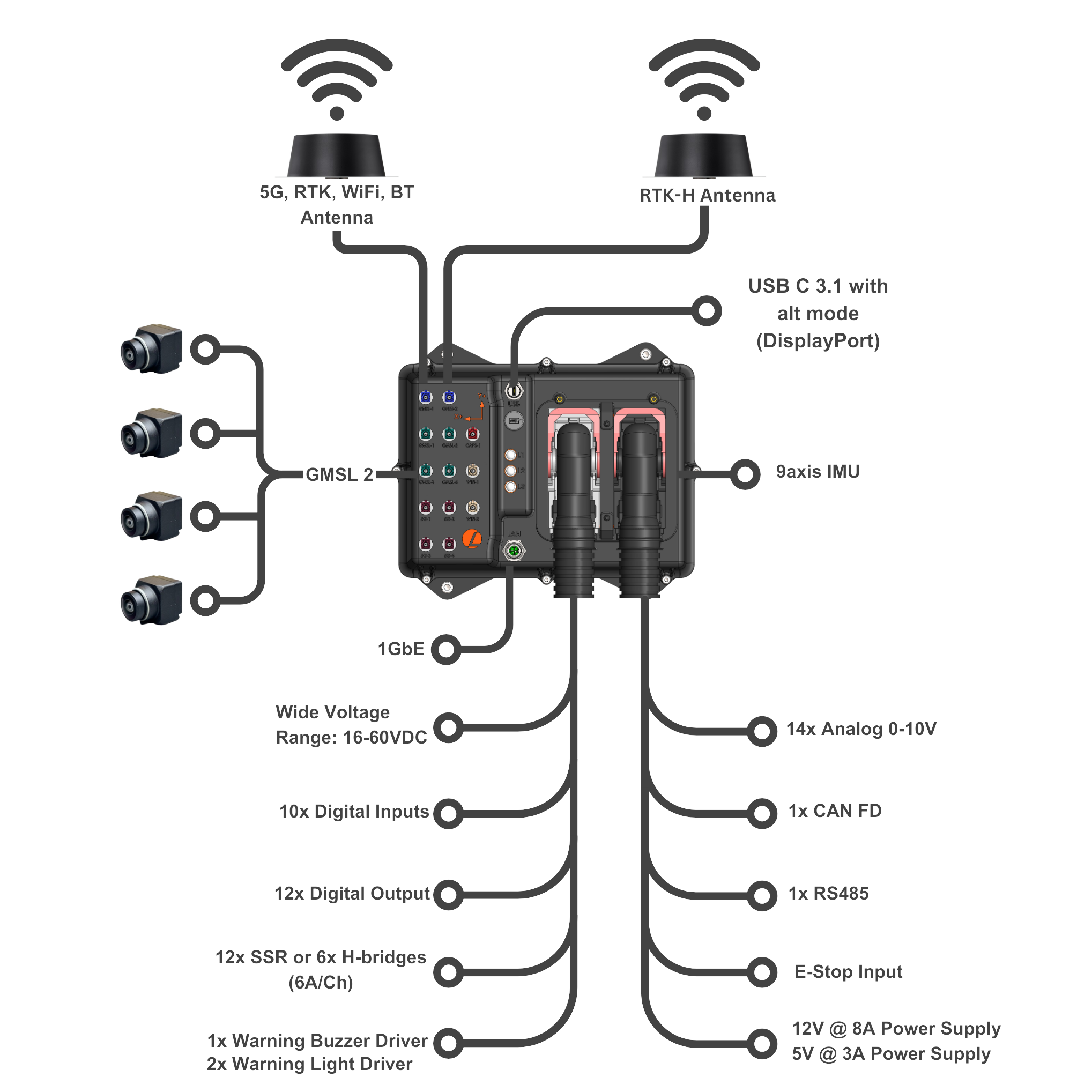

An overview of the AutomatePro
Features
Depending on the configuration, the AutomatePro can be equipped with the following features
Software:
- Base ROS 2 drivers for all sensors and IO
- Linux Ubuntu 22.04
- Jetpack 6.0
- 9 axis IMU (3 axis Compass, 3 axis Gyro, 3 axis Accelerometer)
- GNSS RTK positioning (Wheel tick and direction input optional)
- GNSS Heading
- 2x or 4x GMSL2 Camera Inputs with PoC (Power Over Coax)
- 10x Digital Inputs
- 12x Digital Outputs(~500mA)
- 12x Digital Drive software configurable as half or full-Bridge (7A)
- 14x Analog Inputs (0-10V or 4-20mA(on request))
- E-stop Input
- Warning Light and Buzzer Drivers
- 5G/4G Connectivity
- WiFi
- Bluetooth
- RS485
- CAN FD Bus
- 1GbE Ethernet
- USB 3.1 with Alt Mode for display port connection.
- 15.5V to 58V Supply Voltage Range
- Extensive power supply monitoring with current and voltage sensing on most onboard power supplies and all external facing supplies
- 12V 8A Onboard power supply for external systems
- 5V 3A onboard power supply for external systems
- IP67 water ingress protection
- Robust keyed connectors to prevent systems from being incorrectly connected
- Rapid development with dev tool kit
- Range of supported external sensors and components
Hardware Architecture

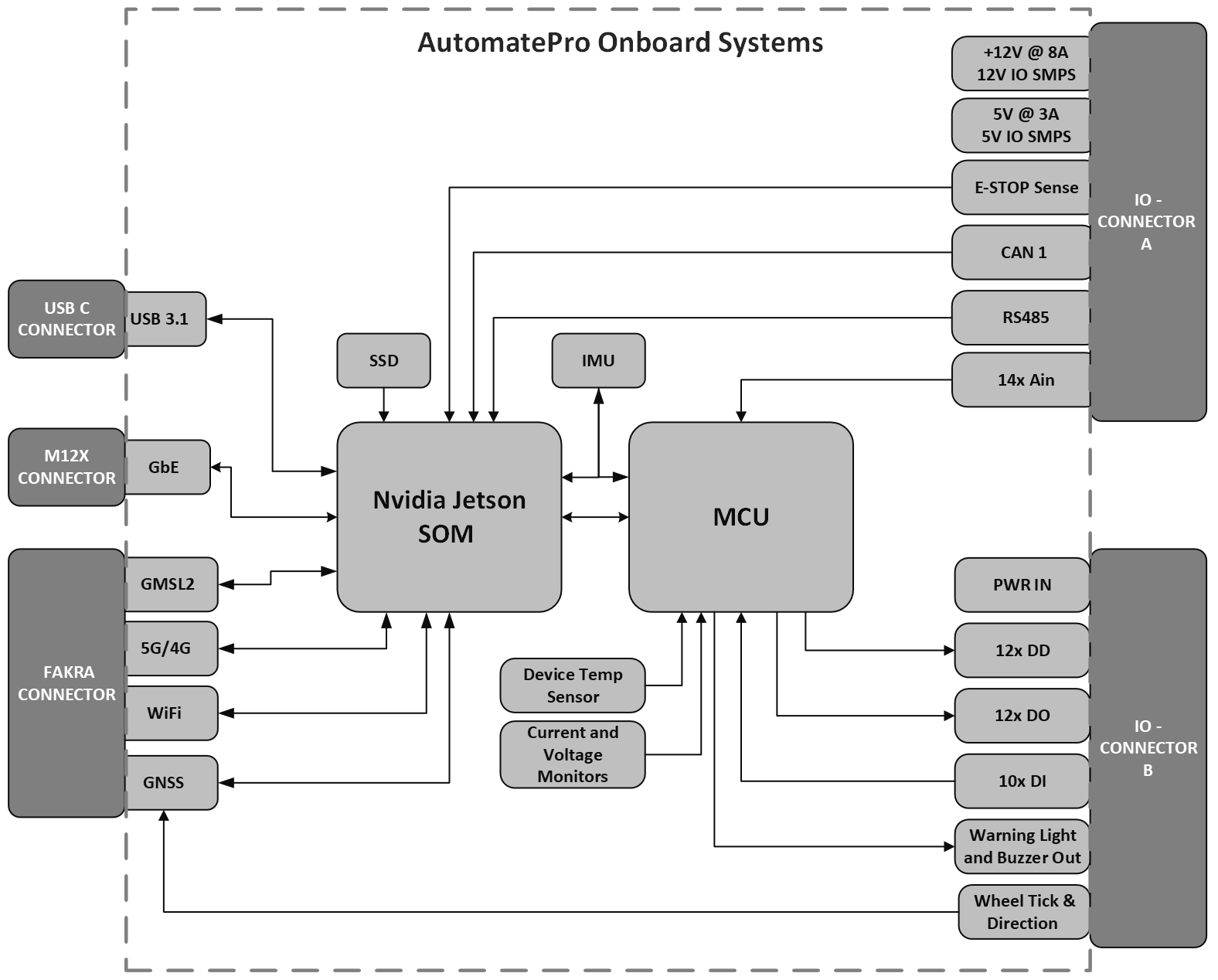

A high level layout of the AutomatePro showing the interconnections of the different systems. The diagram shows most of the IO being controlled by the MCU while the high bandwidth systems such as GMSL, USB3, WiFi, GbE being feed directly to the Jetson SOM. Between the MCU and SOM is a communication bridge falicating the transfer of data. This bridge is initied on start-up

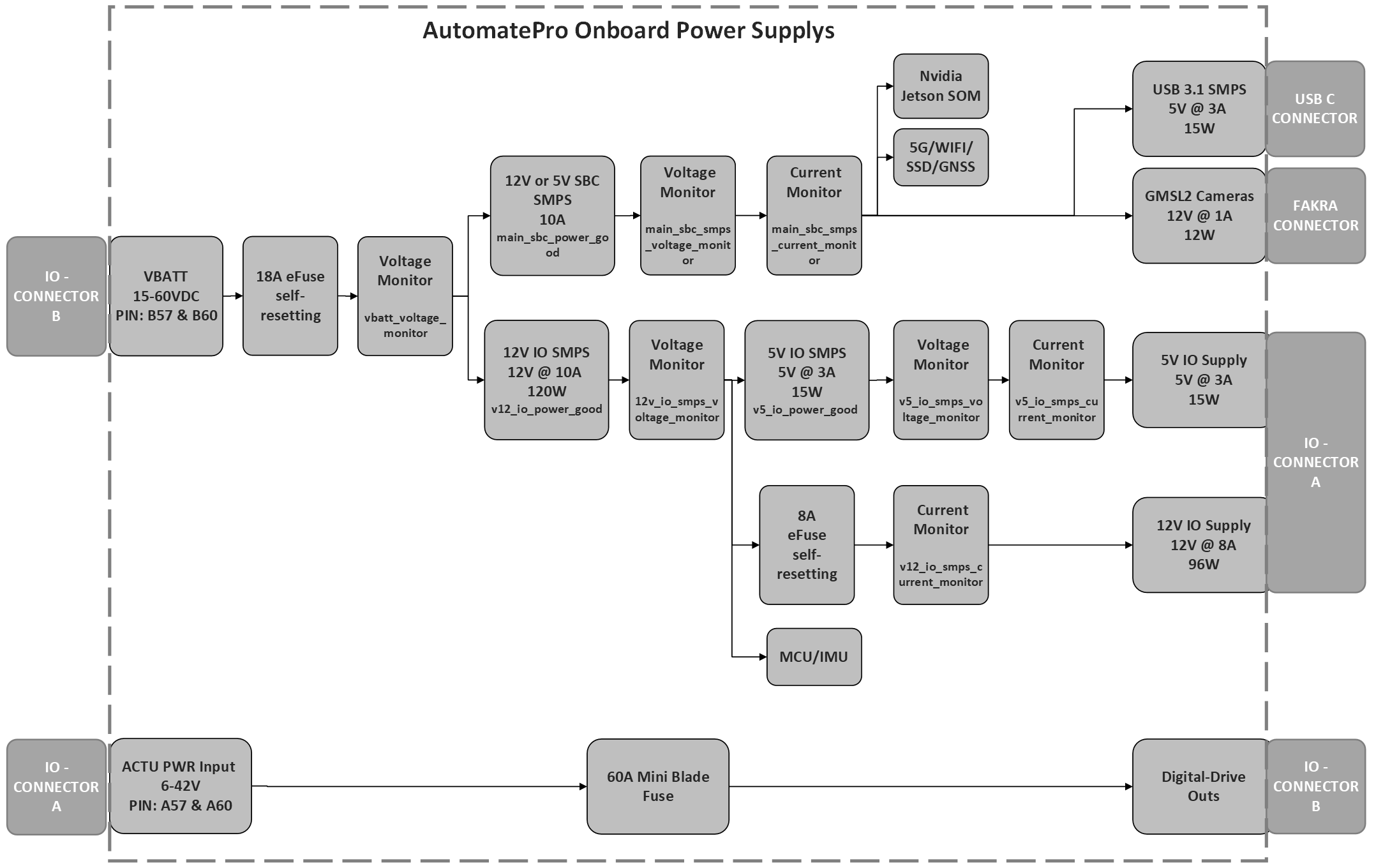

A simplified layout of the internal power’s supplies on the AutomatePro can be seen below - note, this only includes the power supplies that are relevant to the external systems and ignore regulators for onboards systems. The diagram also shows the onboard measurements of both current and voltage of the different rails along with onboard fuses.
Connector Pin Map & Functions

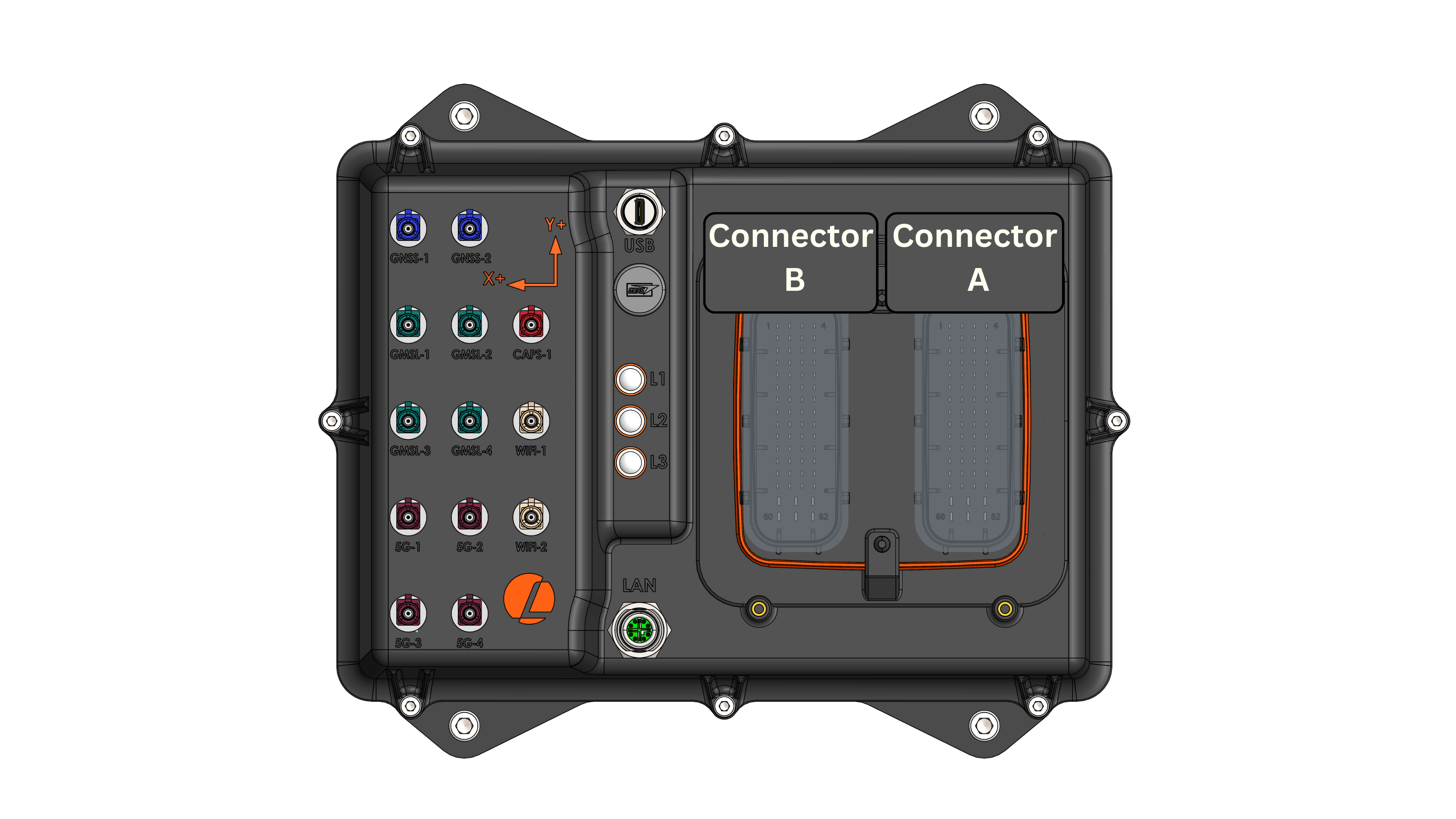

The two primary connectors used on the AutomatePro are from the TE Leavyseal connector series. The number allocation is given:
Connector A
| PIN NO. | PIN NAME | I/O TYPE | DESCRIPTION |
|---|---|---|---|
| A1 | NC | N/A | Not Connected |
| A2 | +12V | Power Out | 12V out with 0.75A self-resetting fuse |
| A3 | GND | Ground | Sensor Ground |
| A4 | AIN_01 | Input | 0-10V analog input (or 4-20mA on request) |
| A5 | E-STOP | Input | E-Stop button sensor for detecting when E-Stop has been pressed. |
| A6 | +12V | Power Out | 12V out with 0.75A self-resetting fuse |
| A7 | GND | Ground | Sensor Ground |
| A8 | AIN_02 | Input | 0-10V analog input (or 4-20mA on request) |
| A9 | GND | Ground | |
| A10 | +12V | Power Out | 12V out with 0.75A self resetting fuse |
| A11 | GND | Ground | Sensor Ground |
| A12 | AIN_03 | Input | 0-10V analog input (or 4-20mA on request) |
| A13 | RS485_P | Input/Output | RS485 serial communications |
| A14 | +12V | Power Out | 12V out with 0.75A self-resetting fuse |
| A15 | GND | Ground | Sensor Ground |
| A16 | AIN_04 | Input | 0-10V analog input (or 4-20mA on request) |
| A17 | RS485_N | Input/Output | RS485 serial communications |
| A18 | +12V | Power Out | 12V out with 0.75A self-resetting fuse |
| A19 | GND | Ground | Sensor Ground |
| A20 | AIN05 | Input | 0-10V analog input (or 4-20mA on request) |
| A21 | GND | Ground | |
| A22 | +12V | Power Out | 12V out with 0.75A self-resetting fuse |
| A23 | GND | Ground | Sensor Ground |
| A24 | AIN06 | Input | 0-10V analog input (or 4-20mA on request) |
| A25 | CAN1_L | Input/Output | CAN channel 1 communications |
| A26 | +12V | Power Out | 12V out with 0.75A self-resetting fuse |
| A27 | GND | Ground | Sensor Ground |
| A28 | AIN07 | Input | 0-10V analog input (or 4-20mA on request) |
| A29 | CAN1_H | Input/Output | CAN channel 1 communications |
| A30 | +5V | Power Out | 5V out with 0.75A self-resetting fuse |
| A31 | GND | Ground | Sensor Ground |
| A32 | AIN08 | Input | 0-10V analog input (or 4-20mA on request) |
| A33 | GND | Ground | |
| A34 | +5V | Power Out | 5V out with 0.75A self resetting fuse |
| A35 | GND | Ground | Sensor Ground |
| A36 | AIN09 | Input | 0-10V analog input (or 4-20mA on request) |
| A37 | CAN2_L | Input/Output | CAN channel 2 communications |
| A38 | +5V | Power Out | 5V out with 0.75A self-resetting fuse |
| A39 | GND | Ground | Sensor Ground |
| A40 | AIN10 | Input | 0-10V analog input (or 4-20mA on request) |
| A41 | CAN2_H | Input/Output | CAN channel 2 communications |
| A42 | +5V | Power Out | 5V out with 0.75A self-resetting fuse |
| A43 | GND | Ground | Sensor Ground |
| A44 | AIN11 | Input | 0-10V analog input (or 4-20mA on request) |
| A45 | GND | Ground | |
| A46 | +5V | Power Out | 5V out with 0.75A self-resetting fuse |
| A47 | GND | Ground | Sensor Ground |
| A48 | AIN12 | Input | 0-10V analog input (or 4-20mA on request) |
| A49 | NC | N/A | Do not connect |
| A50 | +5V | Power Out | 5V out with 0.75A self-resetting fuse |
| A51 | GND | Ground | Sensor Ground |
| A52 | AIN13 | Input | 0-10V analog input (or 4-20mA on request) |
| A53 | NC | N/A | Do not connect |
| A54 | +5V | Power Out | 5V out with 0.75A self-resetting fuse |
| A55 | GND | Ground | Sensor Ground |
| A56 | AIN14 | Input | 0-10V analog input (or 4-20mA on request) |
| A57 | ACTU_PWR | Power Input | Power Supply for all Digital Drives |
| A58 | NC | N/A | Do not connect |
| A59 | NC | N/A | Do not connect |
| A60 | ACTU_PWR | Power Input | Power Supply for all Digital Drives |
| A61 | +12V_IO_OUT | Power Out | +12V out with 8A self-resetting fuse - Used for any high current applications |
| A62 | NC | N/A | Do not connect |

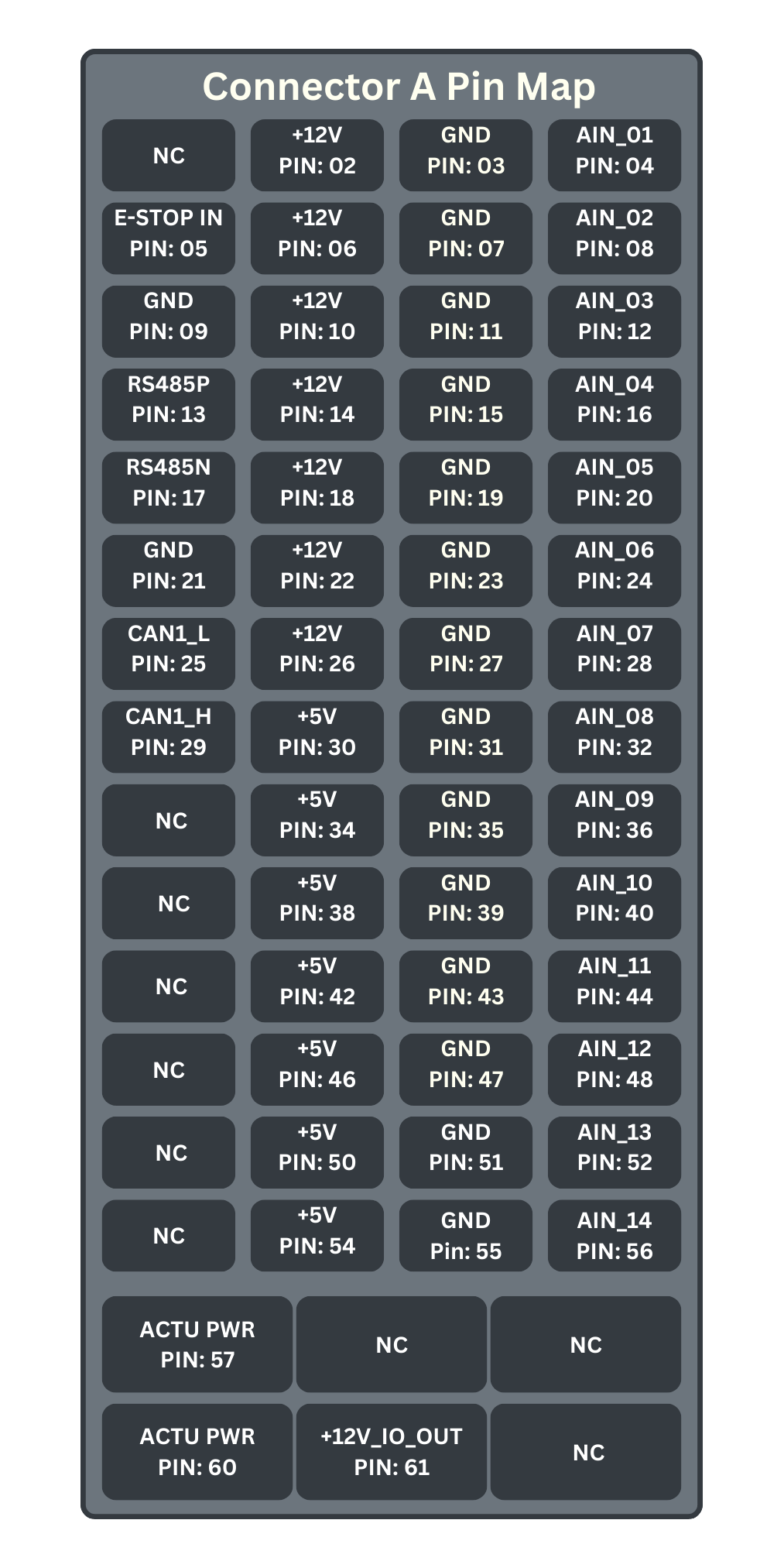

Connector A - Pin map looking top down
Connector B
| PIN NO. | PIN NAME | I/O TYPE | DESCRIPTION |
|---|---|---|---|
| B1 | DI_01 | Input | Digital Inputs |
| B2 | DO_H_01 | Output | Highside Digital Output @12V |
| B3 | DD_H_01 | Output | High Current Drive Output |
| B4 | DD_L_01 | Sink | High Current Sink |
| B5 | DI_02 | Input | Digital Inputs |
| B6 | DO_H_02 | Output | Highside Digital Output @12V |
| B7 | DD_H_02 | Output | High Current Drive Output |
| B8 | DD_L_02 | Sink | High Current Sink |
| B9 | DI_03 | Input | Digital Inputs |
| B10 | DO_H_03 | Output | Highside Digital Output @12V |
| B11 | DD_H_03 | Output | High Current Drive Output |
| B12 | DD_L_03 | Sink | High Current Sink |
| B13 | DI_04 | Input | Digital Inputs |
| B14 | DO_H_04 | Output | Highside Digital Output @12V |
| B15 | DD_H_04 | Output | High Current Drive Output |
| B16 | DD_L_04 | Sink | High Current Sink |
| B17 | DI_05 | Input | Digital Inputs |
| B18 | DO_H_05 | Output | Highside Digital Output @12V |
| B19 | DD_H_05 | Output | High Current Drive Output |
| B20 | DD_L_05 | Sink | High Current Sink |
| B21 | DI_06 | Input | Digital Inputs |
| B22 | DO_H_06 | Output | Highside Digital Output @12V |
| B23 | DD_H_06 | Output | High Current Drive Output |
| B24 | DD_L_06 | Sink | High Current Sink |
| B25 | DI_07 | Input | Digital Inputs |
| B26 | DO_L_01 | Sink | Low side Sink |
| B27 | DD_H_07 | Output | High Current Drive Output |
| B28 | DD_L_07 | Sink | High Current Sink |
| B29 | DI_08 | Input | Digital Inputs |
| B30 | DO_L_02 | Sink | Low side Sink |
| B31 | DD_H_08 | Output | High Current Drive Output |
| B32 | DD_L_08 | Sink | High Current Sink |
| B33 | DI_09 | Input | Digital Inputs |
| B34 | DO_L_03 | Sink | Low side Sink |
| B35 | DD_H_09 | Output | High Current Drive Output |
| B36 | DD_L_09 | Sink | High Current Sink |
| B37 | DI_10 | Input | Digital Inputs |
| B38 | DO_L_04 | Sink | Low side Sink |
| B39 | DD_H_10 | Output | High Current Drive Output |
| B40 | DD_L_10 | Sink | High Current Sink |
| B41 | NC | N/A | Not Connected |
| B42 | DO_L_05 | Sink | Low side Sink |
| B43 | DD_H_11 | Output | High Current Drive Output |
| B44 | DD_L_11 | Sink | High Current Sink |
| B45 | NC | N/A | Not Connected |
| B46 | DO_L_06 | Sink | Low side Sink |
| B47 | DD_H_12 | Output | High Current Drive Output |
| B48 | DD_L_12 | Sink | High Current Sink |
| B49 | WARNING_LIGHT_1 | Sink | High Current Sink for connecting external light |
| B50 | WARNING_LIGHT_2 | Sink | High Current Sink for connecting external light |
| B51 | WHEEL_TICK | Input | Non standard. Contact Lemvos for more information |
| B52 | WHEEL_DIRECTION | Input | Non standard. Contact Lemvos for more information |
| B53 | NC | N/A | Not Connected |
| B54 | WARNING_BUZZER | Sink | High Current Sink for connecting external warning buzzer/alarm |
| B55 | NC | N/A | Not Connected |
| B56 | NC | N/A | Not Connected |
| B57 | VBATT | Power Input | Provides Power to the AutomatePro |
| B58 | NC | N/A | Not Connected |
| B59 | GND | Ground | AutomatePro ground |
| B60 | VBATT | Power Input | Provides Power to the AutomatePro |
| B61 | NC | N/A | Not Connected |
| B62 | GND | Ground | AutomatePro ground |

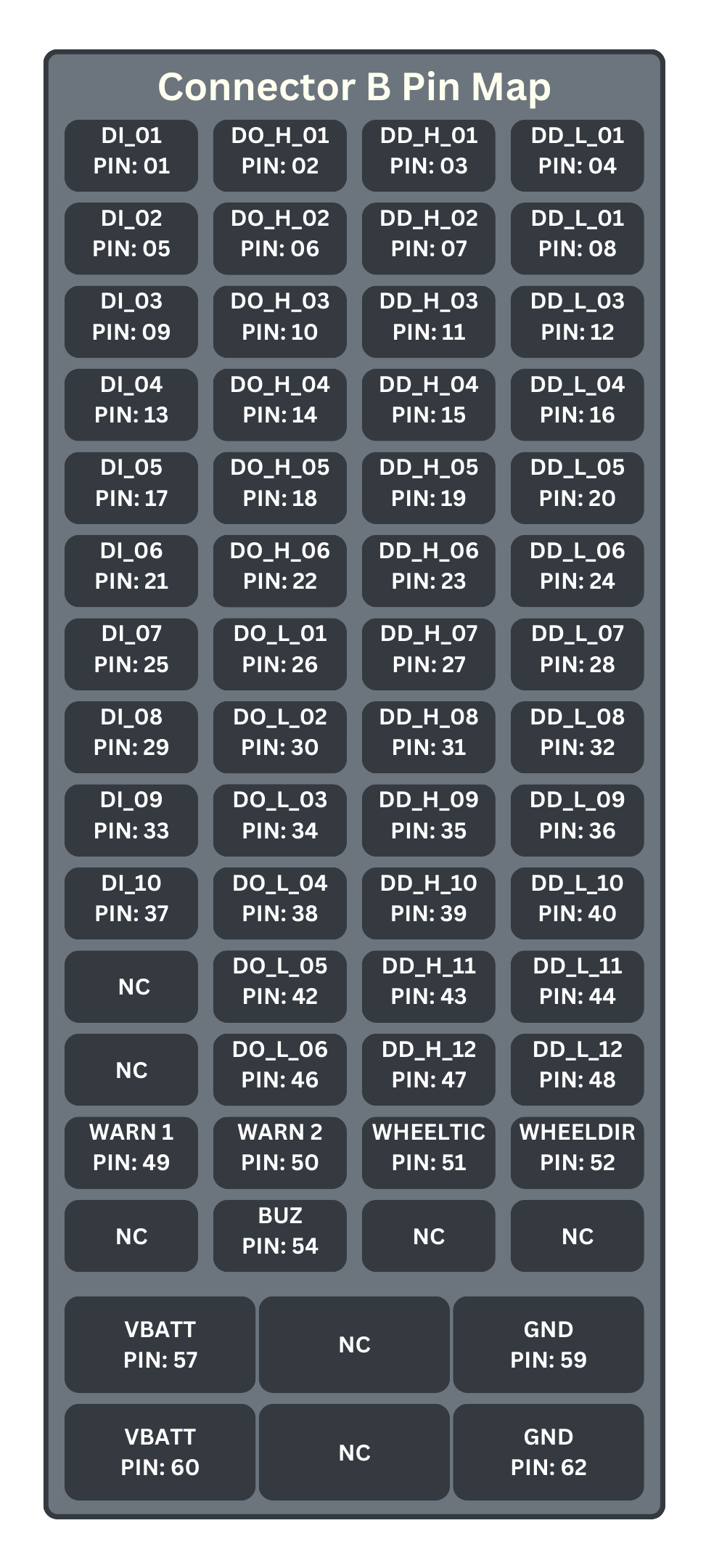

Connector B - Pin map looking top down
Operating Conditions
The table provides both the absolute maximum and minimum limits, as well as the recommended operating conditions. It is strongly advised that nominal operations remain within the recommended operating values.
| DESCRIPTION | ABSOLUTE MAX/MINS | RECOMMENDED OPERATING VALUES | UNITS | TOLERANCE |
|---|---|---|---|---|
| Main AutomatePro Power Input [VBATT] | ||||
| Supply Voltage Range | 15.00-60 | 15.5-58 | VDC | |
| Expected Power Consumption | 10-200¹ | W | ||
| Actuator Power Input (Digital Drive) [ACTU_PWR] | ||||
| Voltage Range | 6-60 | 7-42 | VDC | |
| Max Current | 60 | 55 | A | |
| IO 5V Supply Output [+5V] | ||||
| Output Voltage | - | 5 | VDC | 0.5 |
| Current Cutoff | - | 3 | A | |
| IO 12V Supply Output [+12V] | ||||
| Output Voltage | - | 12 | VDC | 0.5 |
| Current Cutoff | - | 8 | A | |
| Digital Output [DO_H_01-06] | ||||
| Output Voltage | - | 12.0 | VDC | 0.5 |
| Max Current Source | - | 600.0 | mA | |
| PWM Frequency | - | 0.5 | kHz | |
| Duty Cycle | - | 0-100 | % | |
| Software Response Rate | - | 200.0 | ms | |
| Digital Output [DO_L_01-06] | ||||
| Sink Voltage | 0-60 | 0-42 | VDC | |
| Max Current Sink | 1000 | 600.0 | mA | |
| PWM Frequency (DO_L_01-04) | - | 15.0 | kHz | |
| Duty Cycle | - | 0-100 | % | |
| Software Response Rate | - | 200.0 | ms | |
| Digital Drive [DD_x_xx] | ||||
| Drive Voltage | 6-60 | 7-42 | VDC | |
| Rated Current/Channel | 7 | 5.0 | A | |
| PWM Frequency | - | 15.0 | kHz | |
| Duty Cycle | - | 0-100 | % | |
| Software Response Rate | - | 200.0 | ms | |
| Warning System | ||||
| Drive Voltage | 0-40 | 0-24 | VDC | |
| Rated Current/Channel | 5 | 3.0 | A | |
| Software Response Rate | - | 200.0 | ms | |
| Analog Inputs [AIN_xx] | ||||
| Input Voltage | 0-12 | 0-10 | VDC | |
| Sample Rate | - | 30.0 | Hz | |
| Digital Input [DI_xx] | ||||
| Input Voltage Range | 5-30 | 5-24 | VDC | 1 |
| Max Sample Rate | - | 10 | Hz | |
| Environmental | ||||
| Operational Temperature Range | -20 to +45² | °C | ||
| Ingress Protection | IP67 | - | ||
| Mass | 2.2 | kg | ||
1 The power consumption is highly dependent on the external systems attached - without any external systems connected the max consumption is < 30W(NX 16GB).
2 Extended temperature device exists, contact lemvos for more information
LED Functions
| LED Designator | LED Colour | Function |
|---|---|---|
| L1 | GREEN | Power Good - checks all onboard power supplies |
| L1 | BLUE | WIFI - WLAN |
| L1 | RED | nE-STOP - LED will be off when E-STOP is pressed (E-STOP input low) |
| L2 | BLUE | Ethernet Link |
| L2 | RED | Ethernet ACT |
| L3 | GREEN | SSD Read/Write LED |
| L3 | BLUE | WWAN - 5G RF function is on |
| L3 | RED | WIFI - Bluetooth |

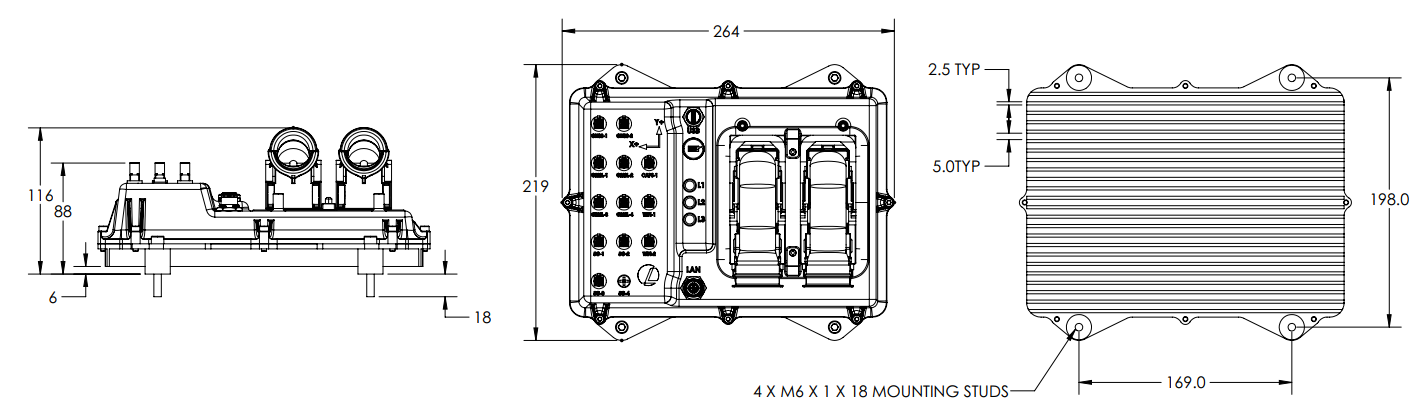

Dimensions
All dimensions are in millimeters (mm).
Compute Modules
AutomatePro supports a range of NVIDIA Jetson Orin modules, each catering to different performance and resource requirements.
Supported NVIDIA Jetson Orin Modules
- Jetson Orin Nano 4GB
- Jetson Orin Nano 8GB
- Jetson Orin NX 8GB
- Jetson Orin NX 16GB
For more information on the performance of the different modules, please refer to the Jetson Orin Series Page
Software Architecture
OS
AutomatePro operates on Jetson Linux 36.3, which features the Linux Kernel 5.15 and an Ubuntu 22.04 based root filesystem. This OS is optimized for the NVIDIA Jetson platform and includes all necessary drivers and libraries pre-installed, ensuring seamless integration and performance.
For more information, refer to the NVIDIA Developer Guide
Jetson Linux 36.3 is part of the NVIDIA JetPack SDK (ver. 6.0), which provides a comprehensive set of tools and libraries for developing end-to-end accelerated AI and ML applications on the Jetson platform.
The kernel is configured with the PREEMPT_RT patch to ensure low-latency and high-priority task execution, which is crucial for real-time robotics applications. For more information on the PREEMPT_RT patch, refer to the official documentation.
AutomatePro is pre flashed with the compatible OS. However, if required, the OS can be manually flashed. Refer to the flashing guide for detailed instructions.
ROS 2
AutomatePro is ROS 2 native and provides necessary abstractions to interact with the hardware. Below is a high-level overview of the ROS 2 nodes.
Docker
AutomatePro leverages Docker for containerized deployment, enhancing ease of deployment, scalability, and management.
Containers
By default, all ROS 2 nodes and other services run in Docker containers. However, it is also possible to run the nodes directly on the host system if required.
All the docker compose files can be found in the ~/.automatepro directory. These are further orchestrated using systemd services.
automatepro-core-driver.service- Core driver nodes for handling GNSS, IMU, Cameras, etc.automatepro-io-agent.service- IO agent for handling digital and analog I/Os, warning systems, etc.automatepro-ros-utils.service- ROS 2 utilities such as foxglove bridge, visualization nodes, etc.
Core Driver
automatepro-core-driver container is responsible for running all the essential drivers abstracting the hardware to the ROS 2 nodes.
IO Agent
The automatepro-io-agent container is responsible for the communication between ROS 2 and the micro-ROS nodes running on the MCU, which handles analog and digital I/Os, warning systems, etc.
Refer the links for more details on IO capabilities.
ROS Utils
automatepro-ros-utils container is responsible for running the ROS 2 utilities such as foxglove bridge, visualization nodes, etc.
This will help you to get started as shown in the Quick Start Guide. It is recommended to remove this container in production with following command:
sudo systemctl disable automatepro-ros-utils.service
docker rm -f automatepro-ros-utils
