5G

Hardware

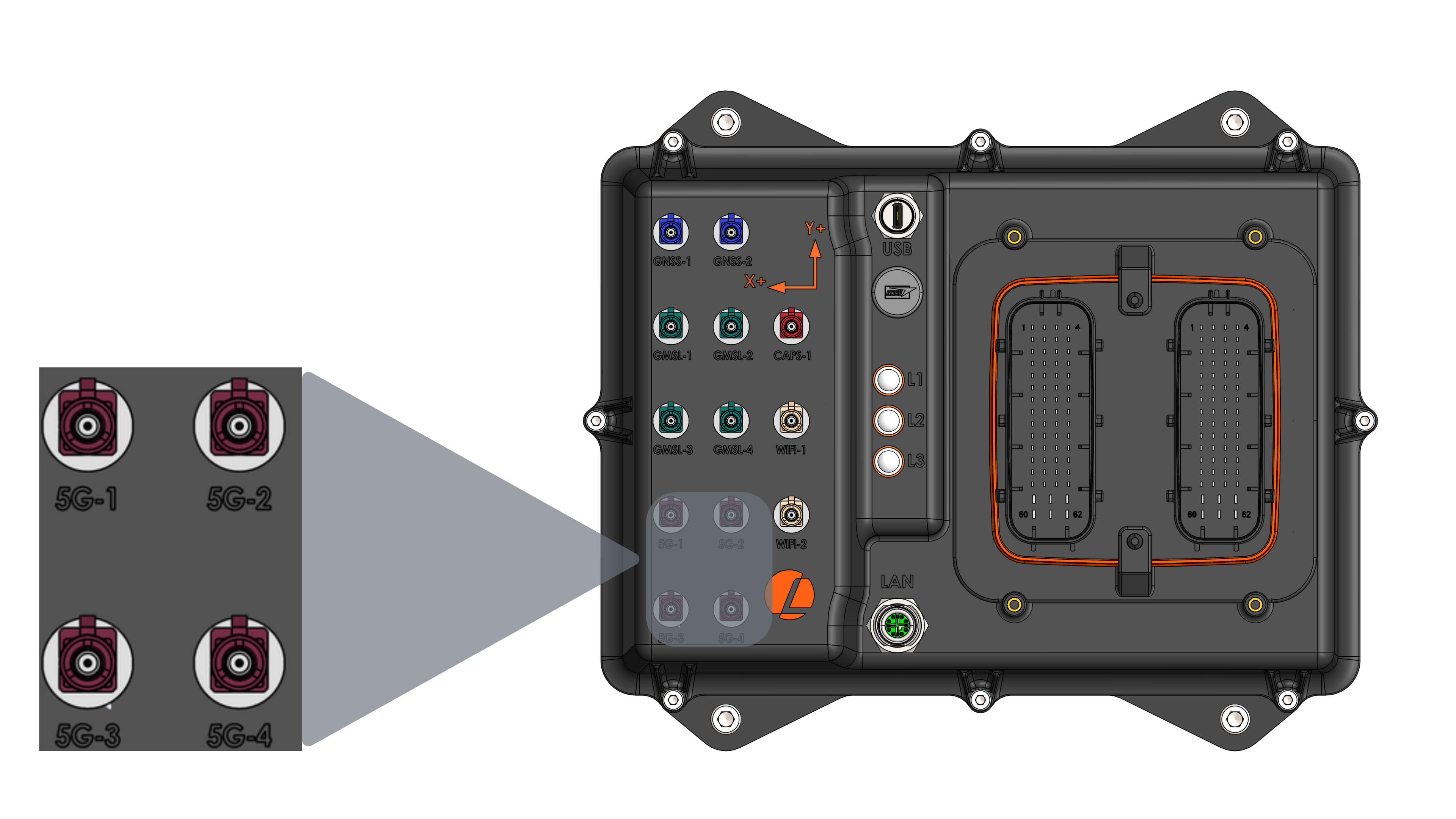

The AutomatePro has optional 5G connectivity. To use this, an external antenna should be connected to the highlighted FAKRA D Coded (Claret Violet) connectors shown in the image below.

Connector Location

5G Specifications

Parameter	Value
Transceiver	RM520N-GL
Max upload data rates	550Mbps (NSA) or 900Mbps (SA)
Max download data rates	3.4Gbps (NSA) or 2.4Gbps (SA)
Frequency	sub-6GHz
Protocol	5G, LTE, WCDMA
Coverage	Worldwide 5G and LTE-A coverage
NSA Bands	n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29 /n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
SA Bands	n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29 /n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79

note

The maximum upload and download rates are based on the manufacturer’s specifications for the 5G device. Actual performance may vary depending on the antenna used and the location of the device.

External Antenna

The AutomatePro system is compatible with a variety of antennas. To find more information on the antennas that have been used with AutomatePro, this can be found here

SIM Card

For devices that have been shipped without a SIM card, this can be added in the following way

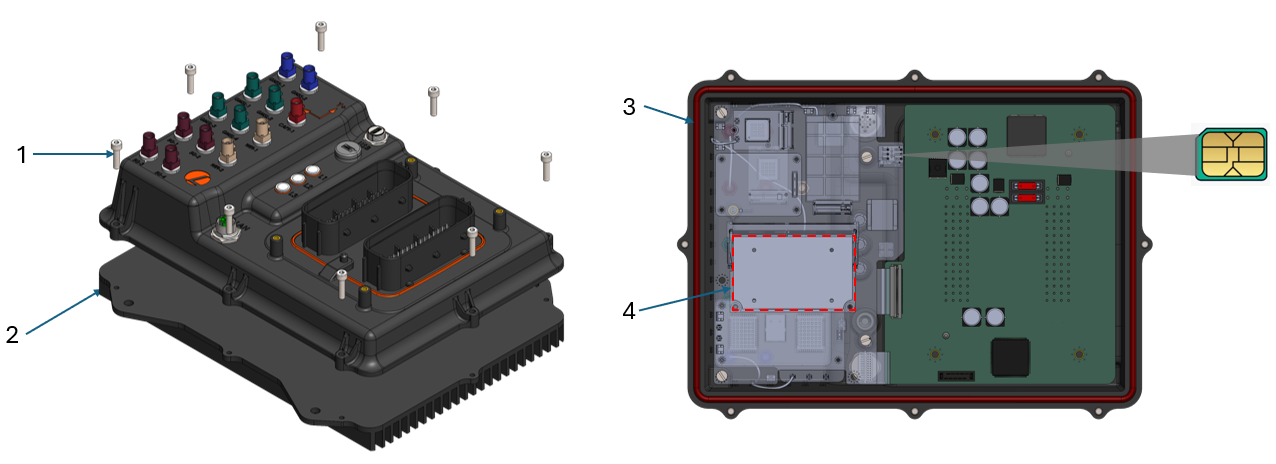

Installing or Removing the SIM Card

1. Ensure the device is powered off and disconnect any external connectors. It is easiest to perform this operation on a bench without the AutomatePro fixed.
2. Loosen and remove the eight M4x16 socket head cap screws (1).
3. Carefully lift the casing off from the heat sink (2).
4. Using tweezers, carefully install the Nano SIM. When removing, push the SIM card inwards, it will then eject itself.
5. Check the heat sink (4) for sufficient thermal paste.
6. Verify that the O-ring (3) is correctly installed and seated.
7. Reposition the casing onto the heat sink (2) and tighten the eight M4 cap screws. Tighten the screws in a cross-star pattern. Do not over-torque the screws.

Configuration

SIM

Important

Be cautious when using AT commands. Incorrect AT commands can cause the device to malfunction. For more information, refer the manual.

Open Serial terminal using minicom or any other serial terminal software to access AT Interface of the 5G module.

sudo minicom -D /dev/ttyUSB3

Run AT commands to check the SIM status

AT+CPIN?

Output:

+CPIN: READY

OK

If the SIM card is not ready, you will need to enter the PIN code using the following command:

AT+CPIN=XXXX

Replace XXXX with the SIM card PIN code. This command will unlock the SIM card temporarily, and it will be locked again after a reboot.

To unlock the SIM card permanently, use the following command:

AT+CLCK="SC",0,"XXXX"

Driver

5G connection is managed by a systemd service called automatepro-wwan-manager. The service is enabled by default and will automatically connect to the network when the device is powered on. This service can be enabled, disabled, started, stopped, and restarted using the systemctl command.

By default, the 5G connection is configured to automatically connect to the network. If you need to manually configure the 5G connection, follow the steps below.

• Start the 5G connection service (temporary start, will not persist after reboot):

sudo systemctl start automatepro-wwan-manager

• Stop the 5G connection service (temporary stop, will restart on reboot):

sudo systemctl stop automatepro-wwan-manager

• Disable automatic connection:

sudo systemctl disable automatepro-wwan-manager

• Enable automatic connection:

sudo systemctl enable automatepro-wwan-manager

Troubleshooting

If you encounter issues connecting to 5G, try the following steps:

Verify the driver status

sudo systemctl status automatepro-wwan-manager

if it is not running, start the service using the following command:

sudo systemctl restart automatepro-wwan-manager

Check the signal strength

Open Serial terminal using minicom or any other serial terminal software to access AT Interface of the 5G module.

sudo minicom -D /dev/ttyUSB3

Run AT commands to check the signal strength

AT+CSQ

Output:

+CSQ: <RSSI>,<ber>

OK

RSSI	dBm Level	Signal Quality
0	-113 dBm or less	▃ (Poor)
1	-111 dBm	▃ ▅ (Fair)
2 - 30	-109 dBm to -53 dBm	▃ ▅ ▇ (Good)
31	-51 dBm or greater	▃ ▅ ▇ ▉ (Excellent)
99	Not known or not detectable	Signal Fault: Check Antenna Connection

If the problem persists, please contact support for further assistance. When contacting support, include the output of the following command:

sudo journalctl -u automatepro-wwan-manager
