Ethernet
Hardware
The AutomatePro includes a 1GbE Ethernet port onboard this is accessible through a M12x connector. Ethernet cables for the M12x can be found here

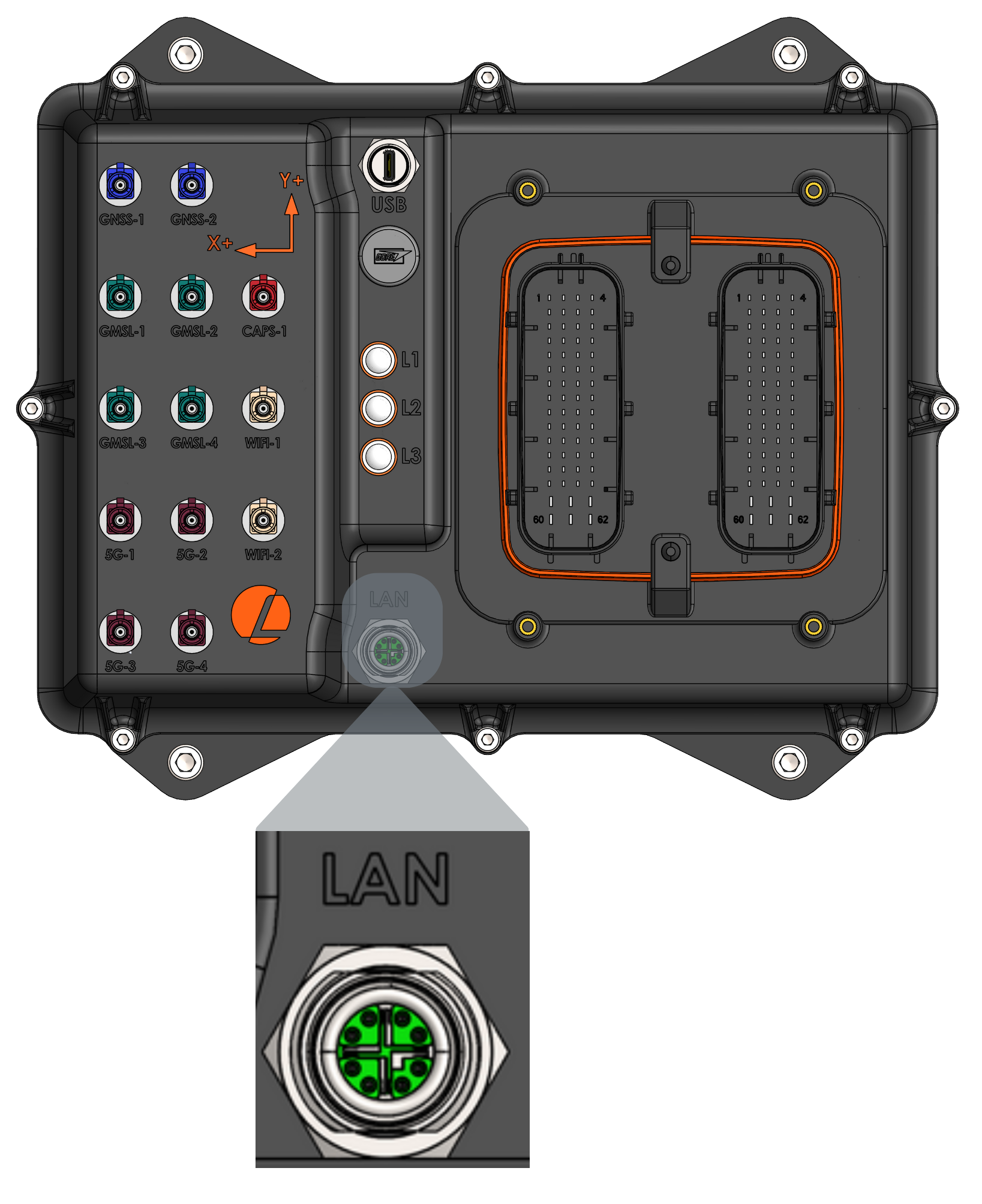

Connector Location
Ethernet Specifications
| Parameter | Value |
|---|---|
| Supported Speed | 10/100/1000Mbps |
| Connector | M12x - IP67 |
| PoE | No |
M12x Connector Pinout
| Pin Number | LAN Signal |
|---|---|
| 1 | MDI0+ |
| 2 | MDI0- |
| 3 | MDI1+ |
| 4 | MDI1- |
| 5 | MDI3+ |
| 6 | MDI3- |
| 7 | MDI2- |
| 8 | MDI2+ |
