Wi-Fi & Bluetooth

Hardware

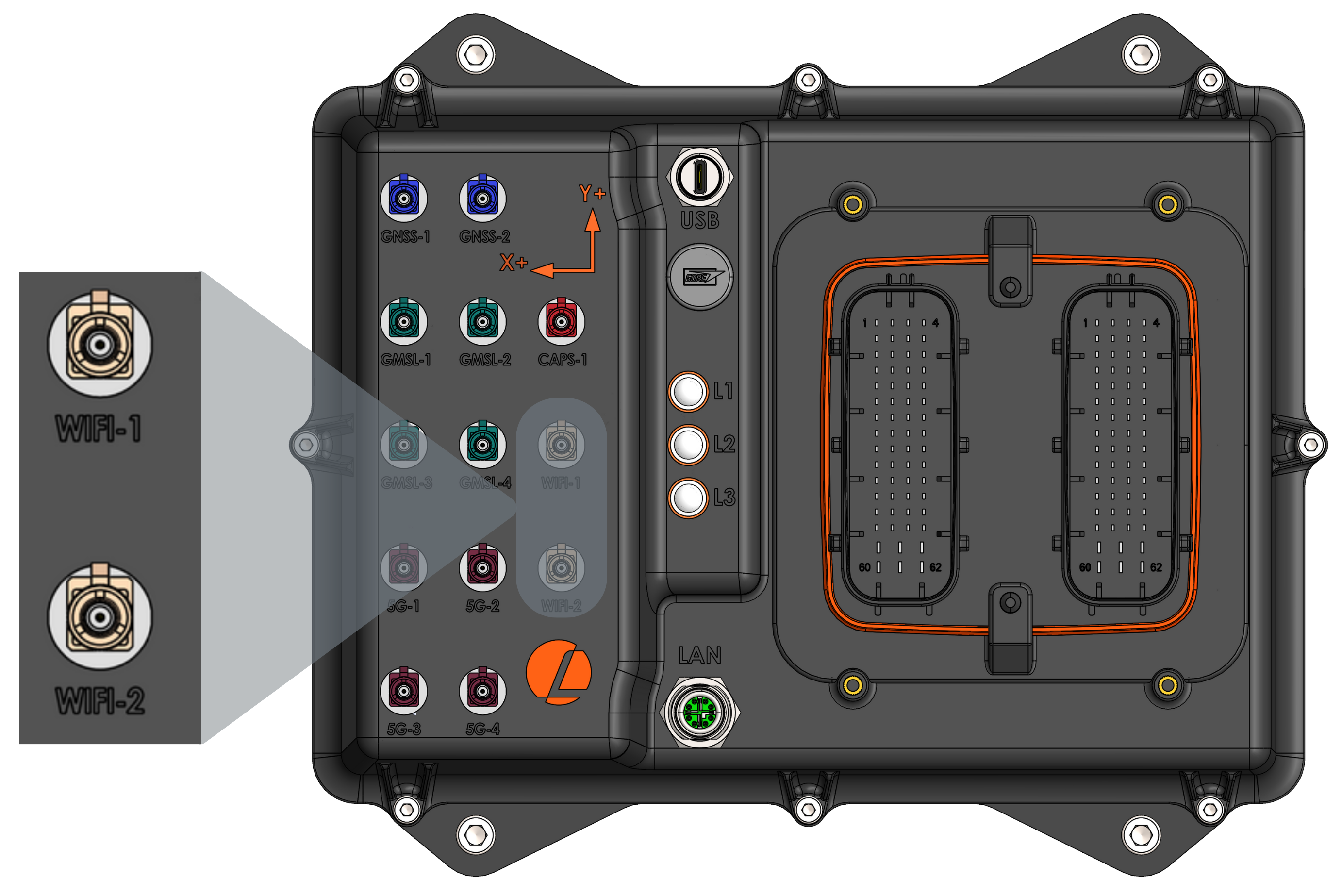

To use Wi-Fi/Bluetooth, connect two external antennas to the highlighted FAKRA I-coded (Beige) connectors shown below.

Connector Location

Wi-Fi & Bluetooth Specifications

Parameter	Value
Transceiver	AW-CB375NF
Frequencies	2.4 GHz and 5 GHz
Max data rate	300 Mbps (@ 2.4 GHz) and 867 Mbps (@ 5 GHz)
WLAN Standard	IEEE 802.11 a/b/g/n/ac MIMO
Bluetooth Standard	BT 5.0 standard & compatible with Bluetooth 2.1+EDR

Configuration

The Wi-Fi connection can be configured using either NMCLI (NetworkManager Command Line Interface) or Remote Desktop.

Using NMCLI

1. Open a terminal (using SSH or serial) on the AutomatePro device.
2. List the available Wi-Fi networks to ensure the desired network is available:

   sudo nmcli dev wifi list
3. Connect to your desired Wi-Fi network:

   sudo nmcli dev wifi connect "YOUR_SSID" password "YOUR_PASSWORD"
4. Verify the connection:

   nmcli dev status
   Ensure that the Wi-Fi device shows as connected.

   DEVICE         TYPE      STATE         CONNECTION
   wlan0          wifi      connected     `your_wifi_network`

Troubleshooting

If you encounter issues connecting to Wi-Fi, try the following steps:

• Ensure that the antennas are securely connected to the FAKRA connectors.
• Verify that the Wi-Fi network credentials (SSID and password) are correct.
• If the issue persists, restart the NetworkManager service and try connecting again.

  sudo systemctl restart NetworkManager

If the problem persists, please contact support for further assistance. When contacting support, include the output of the following command:

sudo journalctl -u NetworkManager
