USB Type-C
Hardware
The AutomatePro features a USB Type-C connector with ALT mode, enabling it to function as a DisplayPort for connecting external screens. Mating cables can be found here.
In addition to connecting to peripheral systems and transferring large amounts of data, the USB-C connector can also be used for reflashing the AutomatePro.

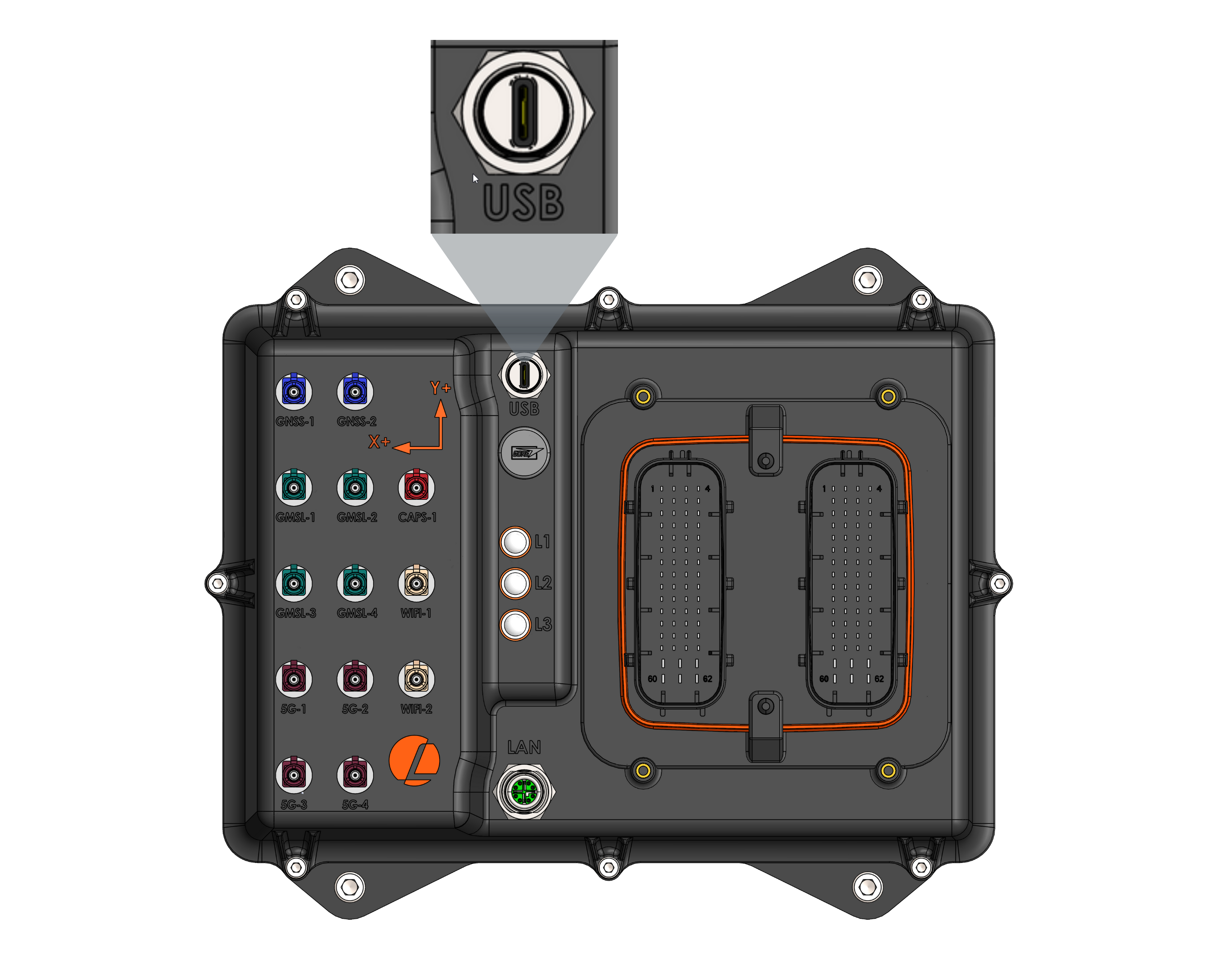

Connector Location
USB Specifications
| Parameter | Value |
|---|---|
| Transceiver | TUSB546-DCI |
| USB Version | 3.1 Gen 1 |
| Max data rate | 5 Gbps |
| Alternative Mode | Yes - Can be used as a DisplayPort |
| Connector | M12 USB-C - IP67 |
