Analog In

Hardware

The AutomatePro comes with 14x Analog inputs for measuring a range of different analog sensors types, such as automotive or industral sensors.

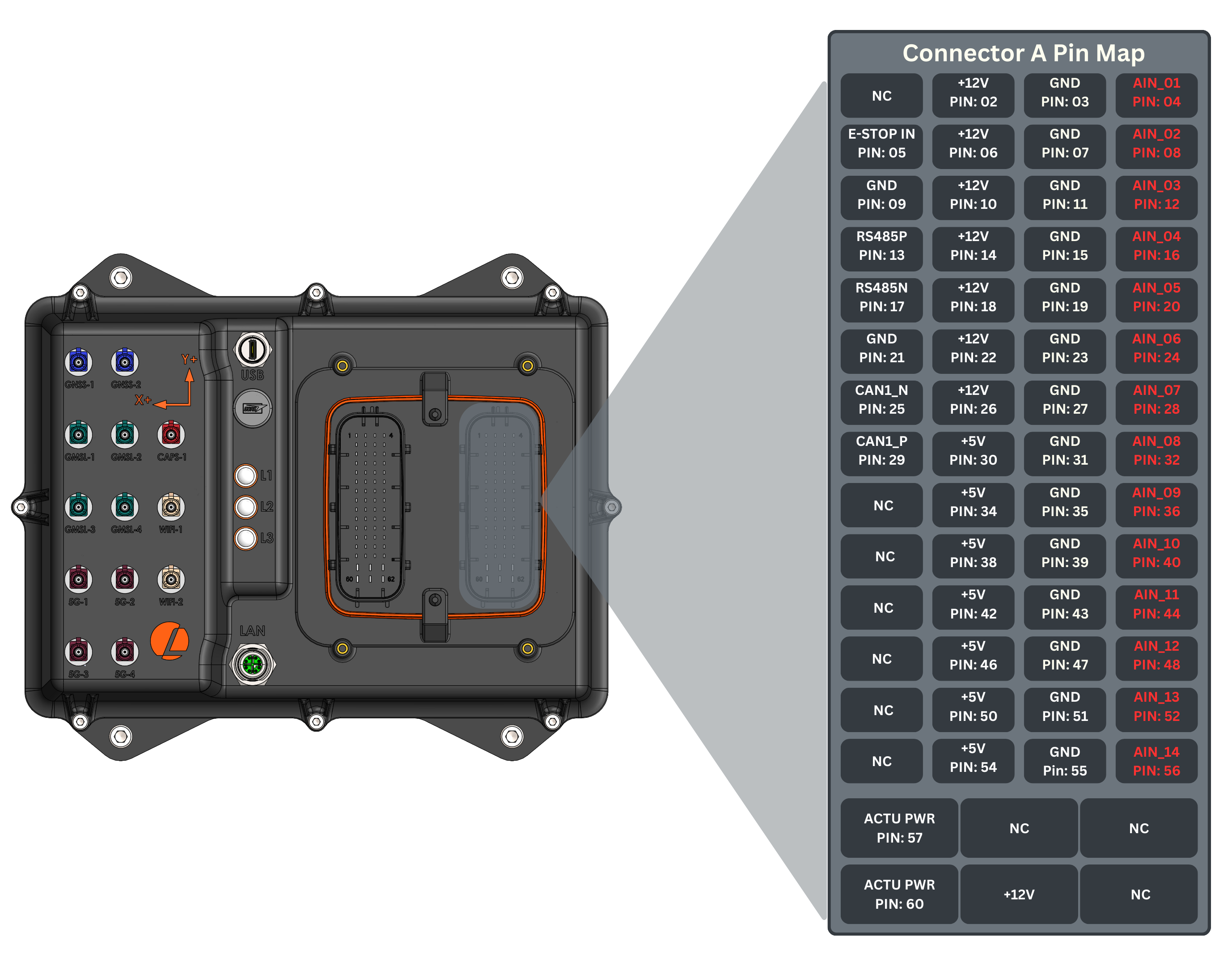

Connector Pinout

Connector

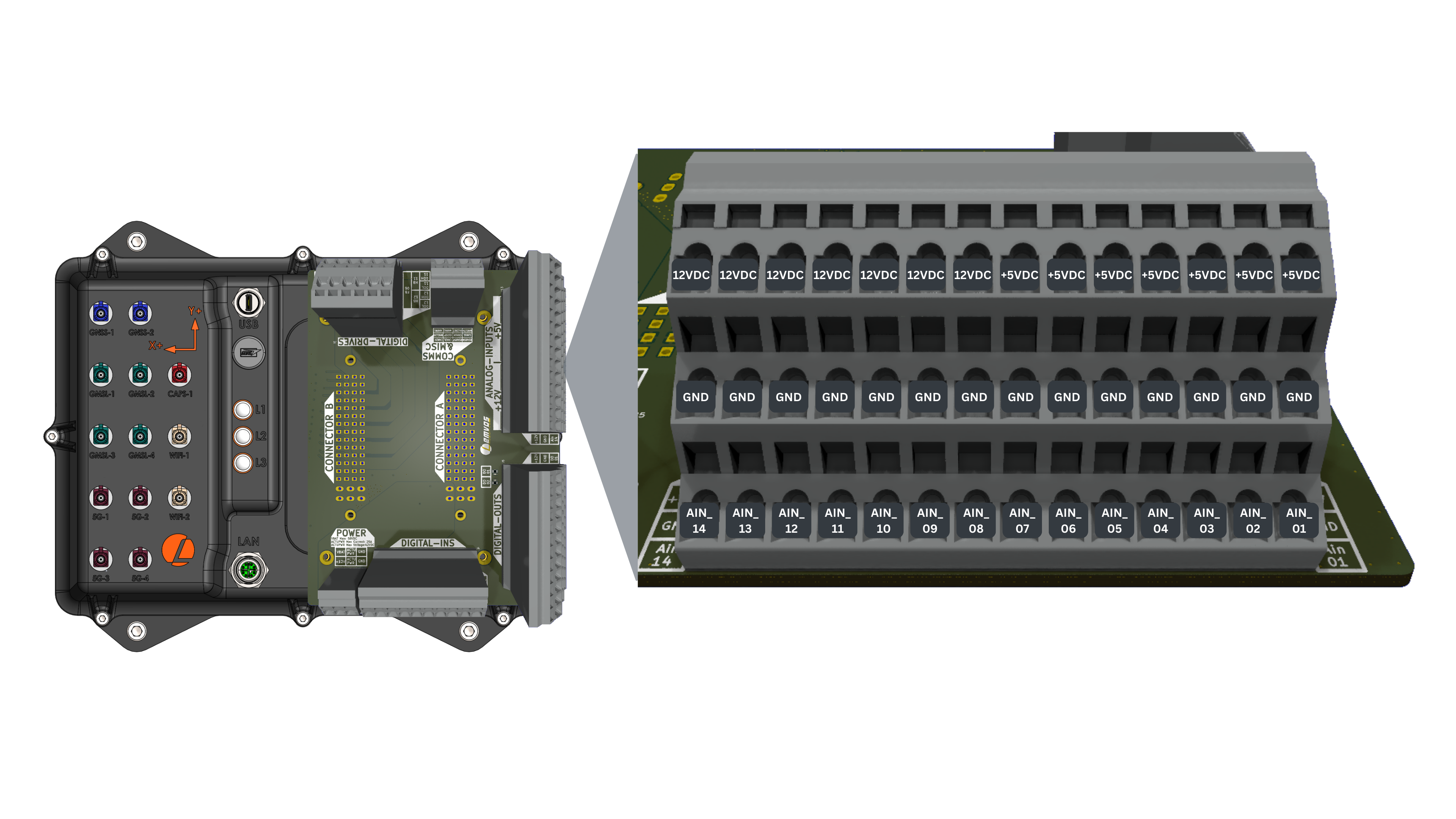

Development Breakout Board

Analog Input Specifications

Parameter	Value
Voltage Input Range	0-10V (optional 4-20mA input or integrated automotive 5V pullup on request)
Sample Rate	30Hz
Measurement Resolution	2.4414mV/increment (12bit)
Number of Inputs	14

ROS API

Publishers

Topic	Type	Description
/io/ain	automatepro_interfaces/msg/AnalogIn	Contains the states of the analog inputs. AutomatePro supports 14 analog input pins. Each input pin is referred to as ain_XX, where XX is the pin number, ranging from 01 to 14. Input Pins: ain_01 - ain_14 DataType: int16 Unit: user-defined (default: mV) Min: -32768 Max: 32768 Sample Rate: 30Hz

tip

Each message includes a timestamp in the header, indicating when the IO-Controller collected the data. It is recommended to use this timestamp for any time-sensitive data processing, as it ensures that transport delays are accounted for, providing accurate timing for downstream operations.

Configuration

Analog input channels can be configured with gain, offset, and filter parameters via the IO Config service for precise scaling, calibration, and signal smoothing.

info

Default Configuration:
Unless reconfigured, all analog inputs use the following defaults:

• Gain: 1.0
• Offset: 0.0
• Filter Coefficient: 1.0 (no filtering)

Raw millivolt (mV) values are published without any signal processing applied.

Services

Service	Type	Description
/io/config	automatepro_interfaces/srv/IOConfig	Configure analog input parameters including gain, offset, and exponential moving average filter. Request Parameters: key: DataType: uint16 Key associated with the value to be changed (0-65535) value: DataType: float32 Corresponding value for the key flag: DataType: uint8 Flags (0-255) Response Parameters: ret_code: DataType: uint16 Return code from MCU (0-65535) ret_value: DataType: float32 Returns the set value if successful

Configuration Keys

The analog input configuration uses keys in the format 1XXY where:

• XX is the analog input index (01-14)
• Y is the parameter type:
  • 0 for gain (m)
  • 1 for offset (c)
  • 2 for exponential moving average filter

Configuration Parameters

Set Gain (m):

• Key: 1XX0 where XX is the AIN index (01-14)
• Value: Desired gain value as float
• Example: Key 1010 sets gain for AIN_01

Set Offset (c):

• Key: 1XX1 where XX is the AIN index (01-14)
• Value: Desired offset value as float
• Example: Key 1011 sets offset for AIN_01

Set Exponential Moving Average Filter:

• Key: 1XX2 where XX is the AIN index (01-14)
• Value: Filter coefficient (0.0 - 1.0)
  • 1.0 = No filtering
  • Lower values = More filtering (slower response)
• Example: Key 1012 sets filter for AIN_01

Signal Processing Formula

1. Scaling and Calibration:

   Scaled_Value = (Raw_Value × Gain) + Offset

2. Exponential Moving Average Filter:

   Final_Value = Previous_Value × (1 - α) + Scaled_Value × α

   Where α (alpha) is the filter coefficient (0.0 - 1.0)

warning

The final calculated value (Raw_Value * Gain) + Offset must not exceed the int16 range (-32768 to 32768).
Results outside this range will be clamped.

Configuration Example

CLI

# Set gain for AIN_01 to 2.0
ros2 service call /io/config automatepro_interfaces/srv/IOConfig "{key: 1010, value: 2.0, flag: 0}"

# Set offset for AIN_01 to 100.0
ros2 service call /io/config automatepro_interfaces/srv/IOConfig "{key: 1011, value: 100.0, flag: 0}"

# Set filter coefficient for AIN_01 to 0.9
ros2 service call /io/config automatepro_interfaces/srv/IOConfig "{key: 1012, value: 0.9, flag: 0}"

Example

Example code snippet prints the states of the analog inputs by subscribing to the /io/ain topic.

Python

import rclpy
from rclpy.node import Node
from automatepro_interfaces.msg import AnalogIn

class AnalogInSubscriber(Node):

    def __init__(self):
        super().__init__('analog_in_subscriber')
        self.subscription = self.create_subscription(
            AnalogIn,
            '/io/analog_in',
            self.subscriber_callback,
            10)

    def subscriber_callback(self, msg):
        self.get_logger().info(
            f'Received AnalogIn message:\n'
            f'AIN_01: {msg.ain_01}\nAIN_02: {msg.ain_02}\nAIN_03: {msg.ain_03}\n'
            f'AIN_04: {msg.ain_04}\nAIN_05: {msg.ain_05}\nAIN_06: {msg.ain_06}\n'
            f'AIN_07: {msg.ain_07}\nAIN_08: {msg.ain_08}\nAIN_09: {msg.ain_09}\n'
            f'AIN_10: {msg.ain_10}\nAIN_11: {msg.ain_11}\nAIN_12: {msg.ain_12}\n'
            f'AIN_13: {msg.ain_13}\nAIN_14: {msg.ain_14}'
        )

def main(args=None):
    rclpy.init(args=args)
    node = AnalogInSubscriber()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    main()

Run the node using the following command:

ros2 run automatepro_python_tutorials analog_in_node

C++

#include <rclcpp/rclcpp.hpp>
#include <automatepro_interfaces/msg/analog_in.hpp>

class AnalogInSubscriber : public rclcpp::Node
{
public:
    AnalogInSubscriber()
        : Node("analog_in_subscriber")
    {
        subscription_ = this->create_subscription<automatepro_interfaces::msg::AnalogIn>(
            "/io/analog_in", 10,
            std::bind(&AnalogInSubscriber::listener_callback, this, std::placeholders::_1));
    }

private:
    void listener_callback(const automatepro_interfaces::msg::AnalogIn::SharedPtr msg) const
    {
        RCLCPP_INFO(this->get_logger(),
            "Received AnalogIn message:\n"
            "AIN_01: %u\nAIN_02: %u\nAIN_03: %u\n"
            "AIN_04: %u\nAIN_05: %u\nAIN_06: %u\n"
            "AIN_07: %u\nAIN_08: %u\nAIN_09: %u\n"
            "AIN_10: %u\nAIN_11: %u\nAIN_12: %u\n"
            "AIN_13: %u\nAIN_14: %u",
            msg->ain_01, msg->ain_02, msg->ain_03,
            msg->ain_04, msg->ain_05, msg->ain_06,
            msg->ain_07, msg->ain_08, msg->ain_09,
            msg->ain_10, msg->ain_11, msg->ain_12,
            msg->ain_13, msg->ain_14);
    }

    rclcpp::Subscription<automatepro_interfaces::msg::AnalogIn>::SharedPtr subscription_;
};

int main(int argc, char *argv[])
{
    rclcpp::init(argc, argv);
    rclcpp::spin(std::make_shared<AnalogInSubscriber>());
    rclcpp::shutdown();
    return 0;
}

Run the node using the following command:

ros2 run automatepro_cpp_tutorials analog_in_node
