Digital In

Hardware

The AutomatePro comes with 10x digital inputs for checking the binary state of external systems. It is designed to work with a wide range of different sensors and switches.

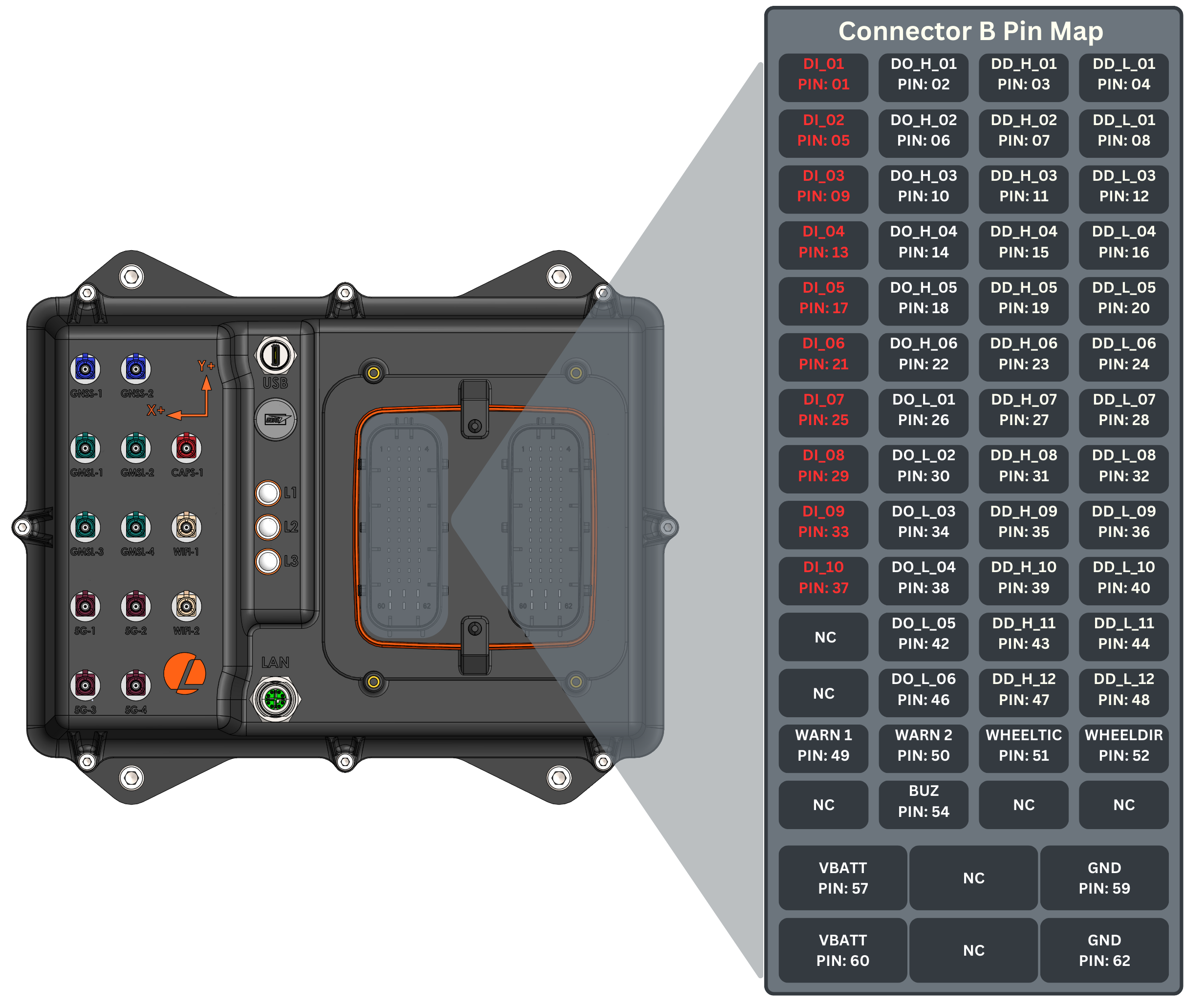

Connector Pinout

Connector

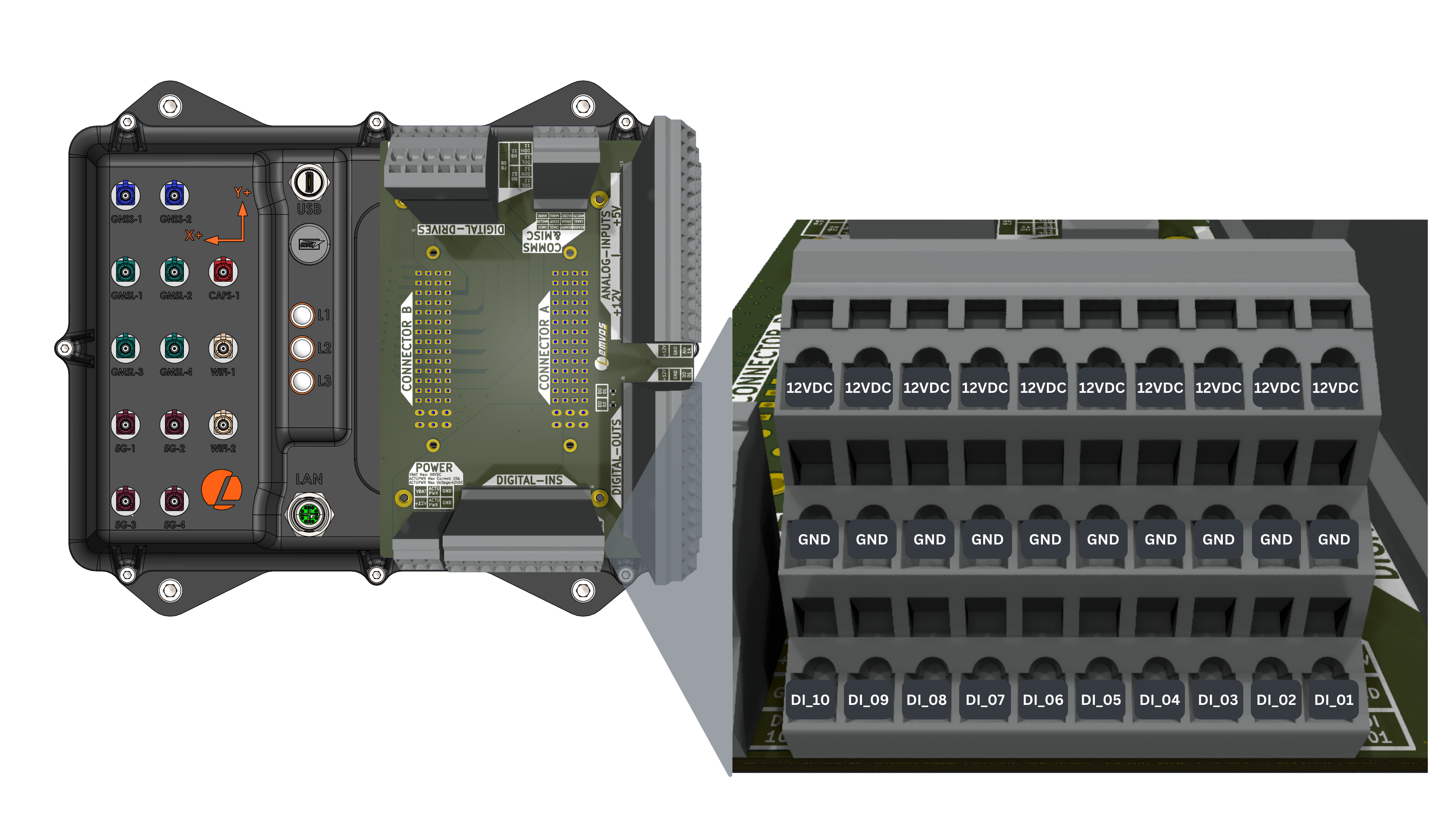

Development Breakout Board

Digital Input Specifications

Parameter	Value
High Voltage State	5-24V
Low Voltage State	<2V
Input Impedance	2kΩ
Sample Rate	10Hz
Number of Inputs	10

ROS API

Publishers

Topic	Type	Description
/io/din	automatepro_interfaces/msg/DigitalIn	Contains the states of the digital in. Only published on state change or when requested. AutomatePro supports 10 digital input pins. Each input pin is referred to as din_XX, where XX is the pin number, ranging from 01 to 10. Input Pins: din_01-din_10 DataType: bool Response Rate: 200 ms

Services

Service	Type	Description
/io/din/request	automatepro_interfaces/srv/ReqDigitalIn	Request to send the current state of the digital inputs. When requested, current states will be published to /io/din.

tip

It is recommended to request the states of the digital inputs by calling the service, immediately after subscribing to /io/din to ensure you have the most up-to-date information.

Example

Example code snippet prints the states of the digital inputs by subscribing to the /io/din topic.

Python

import rclpy
from rclpy.node import Node
from automatepro_interfaces.msg import DigitalIn
from automatepro_interfaces.srv import ReqDigitalIn


class DigitalInSubscriber(Node):

    def __init__(self):
        super().__init__('digital_in_subscriber')
        self.subscription = self.create_subscription(
            DigitalIn,
            '/io/din',
            self.listener_callback,
            10)
        self.client = self.create_client(ReqDigitalIn, '/io/din/request')
        self.request_state() # Request the current state of the digital inputs

    def listener_callback(self, msg):
        self.get_logger().info('Received DigitalIn message: %s' % [
            msg.din_01, msg.din_02, msg.din_03, msg.din_04, msg.din_05,
            msg.din_06, msg.din_07, msg.din_08, msg.din_09, msg.din_10])

    def request_state(self):
        while not self.client.wait_for_service(timeout_sec=1.0):
            self.get_logger().info('service not available, waiting again...')
        request = Trigger.Request()
        self.future = self.client.call_async(request)
        self.future.add_done_callback(self.service_callback)

    def service_callback(self, future):
        try:
            response = future.result()
            self.get_logger().info('Service response: %s' %
                                    ('Success' if response.success else 'Failure'))
        except Exception as e:
            self.get_logger().info('Service call failed %r' % (e,))

def main(args=None):
    rclpy.init(args=args)
    node = DigitalInSubscriber()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    main()

Run the node using the following command:

ros2 run automatepro_python_tutorials digital_in_node

C++

#include <rclcpp/rclcpp.hpp>
#include <automatepro_interfaces/msg/digital_in.hpp>
#include <automatepro_interfaces/srv/req_digital_in.hpp>

class DigitalInSubscriber : public rclcpp::Node
{
public:
    DigitalInSubscriber()
        : Node("digital_in_subscriber")
    {
        subscription_ = this->create_subscription<automatepro_interfaces::msg::DigitalIn>(
            "/io/din", 10,
            std::bind(&DigitalInSubscriber::listener_callback, this, std::placeholders::_1));

        client_ = this->create_client<automatepro_interfaces::srv::ReqDigitalIn>("/io/din/request");
        request_state(); // Request the current state of the digital inputs
    }

private:
    /*
    * Callback function for the subscription
    */
    void listener_callback(const automatepro_interfaces::msg::DigitalIn::SharedPtr msg) const
    {
        RCLCPP_INFO(this->get_logger(), "Received DigitalIn message: %d %d %d %d %d %d %d %d %d %d",
                    msg->din_01, msg->din_02, msg->din_03, msg->din_04, msg->din_05,
                    msg->din_06, msg->din_07, msg->din_08, msg->din_09, msg->din_10);
    }

    /*
    * Request the current state of the digital inputs
    */
    void request_state()
    {
        while (!client_->wait_for_service(std::chrono::seconds(1))) {
            RCLCPP_INFO(this->get_logger(), "service not available, waiting again...");
        }

        auto request = std::make_shared<automatepro_interfaces::srv::ReqDigitalIn::Request>();
        using ServiceResponseFuture = rclcpp::Client<automatepro_interfaces::srv::ReqDigitalIn>::SharedFuture;
        auto response_received_callback = [this](ServiceResponseFuture future) {
            auto response = future.get();
            if (response->success) {
                RCLCPP_INFO(this->get_logger(), "Service response received: success= %d", response->success);
            } else {
                RCLCPP_ERROR(this->get_logger(), "Service call failed");
            }
        };

        auto result = client_->async_send_request(request, response_received_callback);
    }

    rclcpp::Subscription<automatepro_interfaces::msg::DigitalIn>::SharedPtr subscription_;
    rclcpp::Client<automatepro_interfaces::srv::ReqDigitalIn>::SharedPtr client_;
};

int main(int argc, char *argv[])
{
    rclcpp::init(argc, argv);
    rclcpp::spin(std::make_shared<DigitalInSubscriber>());
    rclcpp::shutdown();
    return 0;
}

Run the node using the following command:

ros2 run automatepro_cpp_tutorials digital_in_node
